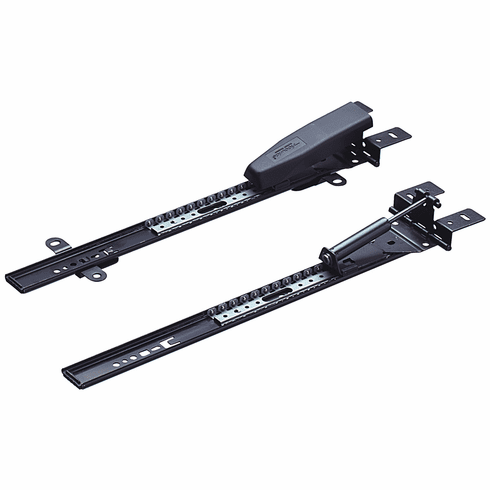

Hafele 408.22.346 Flipper Door Slide, Accuride 1155 - Easy Down 18" Slide length

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.22.346

  Product Title: Flipper Door Slide, Accuride 1155 - Easy Down, 18" Slide length

  Category: Flipper Door Slide, Accuride 1155 - Easy Down,

  Item Details …

  - Doors open over the top of cabinet

  - Mounting brackets are included and recommended when particle board is used

  - The Easy-down requires few or no cabinet modifications, and is easy to install

  - Door closing speed remains similar on light and heavy doors

  - Increases safety in the home or workplace by slowing the speed and dampening overhead doors as they close

  - Internal mounting allows cabinets to be positioned side to side

  - Only one pair needed for doors up to 48” wide; no adjustments necessary to the closure mechanisms

  - Capacity up to 14 kg (30 lbs.)/pair, doors up to 48” wide

  - Area of application : For wood applications

  - Material : Steel

  - Supplied with:

  - 2 slides

  - 2 cylinder covers

  - 4 clip-on brackets

  - Mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  EASY-DOWN CB-1155 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.169



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.150-9.150.pdf

  Hafele 408.22.346, 408-22-346, 40822346, 408.22


  Specifications/Hafele Catalog - Page# FC9.136: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
