Hafele 408.24.020 Inlay Door Accessory Pack, 35 mm, for Accuride XL Slide Pocket Door 35 mm hinge/plate for 1 door, Self-closing

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.24.020

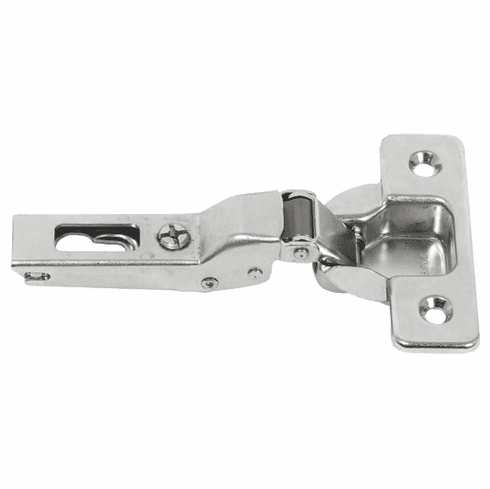

  Product Title: Inlay Door Accessory Pack, 35 mm, for Häfele Slido F-Park 71 16A, 35 mm hinge/plate for 1 door, Self-closing

  Category: Inlay Door Accessory Pack, 35 mm, for Häfele Slido F-Park 71 16A, 35 mm hinge/plate for 1 door

  Item Details …

  - When using free swinging hinges it is recommended to use catches.

  - Suitable for number of door leaves : 1.00

  - For door thickness : 16?–?19 mm

  - For door thickness min. : 5/8"

  - For door thickness max. : 3/4"

  - Area of application : For inset mounting (Infront)

  - Installation : With screws

  - Installation description : Fitting of door to cabinet without tools (clip system)

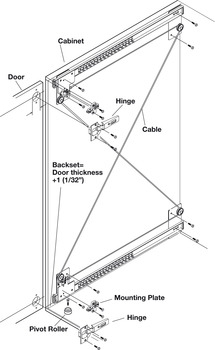

  - Supplied with:

  - Mounting instructions

  - (4) 020.05.211 - M4 x 5 mm - Hinge plate mounting screws

  - (4) 015.55.639 - 3.5 x 15 mm - Hinge mounting screws

  - (2) 418.09.300 - Pivot roller

  - (2) 015.31.675 - Pivot roller mounting screw

  - (10) 013.03.304 - Slide mounting screws

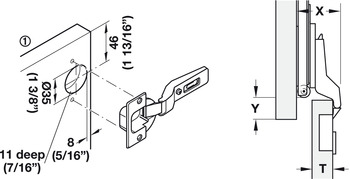

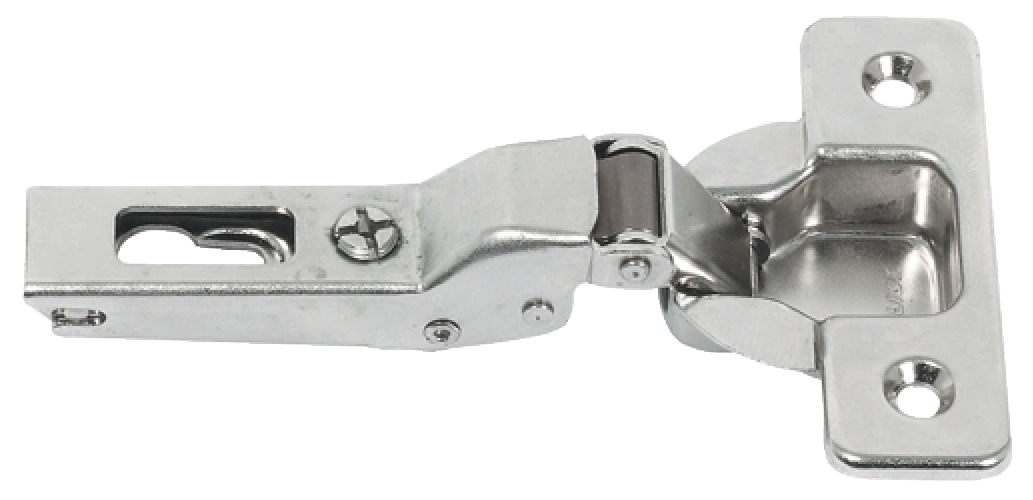

  - (2) 329.31.502 - 94°, 35 mm cup hinge, self-closing

  - (2) 329.71.503 - Clip mounting plate, with single screw adjustment

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  XL Pocket Door Slide Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.121



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.103-7.104.pdf

  Hafele 408.24.020, 408-24-020, 40824020, 408.24


  Specifications/Hafele Catalog - Page# FC7.165: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
