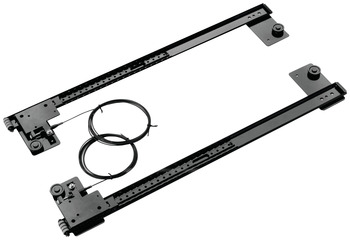

Hafele 408.24.324 Pocket Door System, XL Slide Length: 440 mm (17 5/16")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.24.324

  Product Title: Pocket Door System, Häfele Slido F-Park 71 16A, Length: 440 mm (17 5/16")

  Category: Pocket Door System, Häfele Slido F-Park 71 16A,

  Item Details …

  - Steel cable is black nylon coated to reduce friction and enhance appearance

  - Jigs or fixtures are not required to locate slide top and bottom, integral location tabs locate slides in cabinet

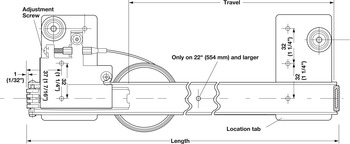

  - Adjustment screws allow maximum adjustability, cable tensioning adjustment is located at the slide front

  - Easily accessible from front of cabinet

  - Soft rubber roller on slide front protects door front from scratches and marring

  - Minimal installation and adjustment time for lower production costs

  - For door thickness max. : 1 1/4"

  - For door height (inches) : 32"

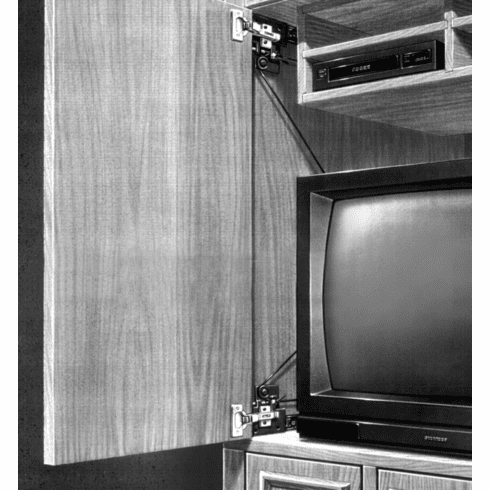

  - Area of application : Especially suited for use in larger door cabinets such as home theater applicationsFor use with doors up to 60” high, 24” wide & weighing up to 35 lbs.Accommodates doors up to 1 1/4” thick

  - Material : Steel, Zinc-electroplated and plasticCable: Steel, nylon coated

  - Color/finish : Black

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Slido F-Park71 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.120



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.103-7.104.pdf

  Hafele 408.24.324, 408-24-324, 40824324, 408.24


  Specifications/Hafele Catalog - Page# FC7.164: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Inlay Door Accessory Pack, 40 mm, for Häfele Slido F-Park 71 16A (choose one):


  • 40 mm hinge/plate for 1 door, Self-closing 40 mm hinge/plate for 1 door, Free-swinging

    408.24.002 408.24.004

    Click to order Click to order



  Inlay Door Accessory Pack, 35 mm, for Häfele Slido F-Park 71 16A (choose one):


  • 35 mm hinge/plate for 1 door, Self-closing 35 mm hinge/plate for 1 door, Free-swinging

    408.24.020 408.24.050

    Click to order Click to order



  Overlay Door Accessory Pack, 40 mm, for Häfele Slido F-Park71 16A (choose one):


  • 40 mm hinge/plate for 1 door, overlay application

    408.24.011

    Click to order
