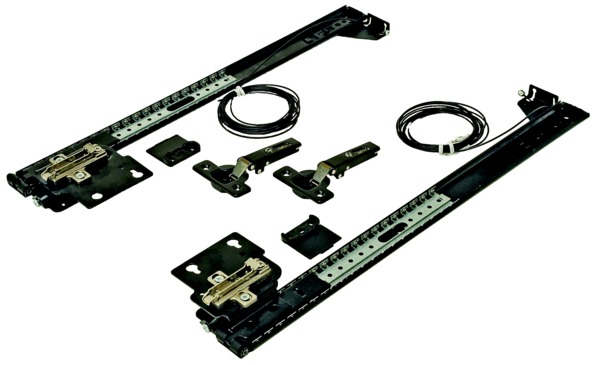

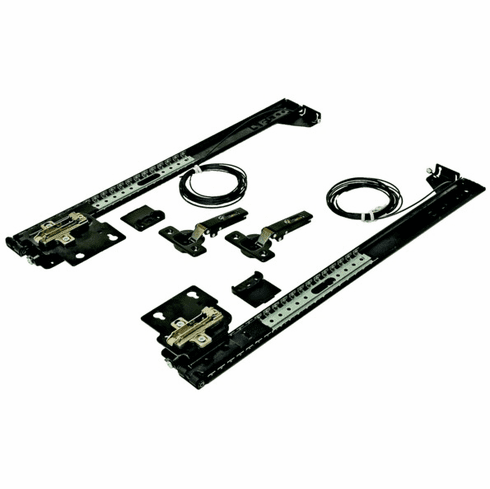

Hafele 408.24.471 Pocket Door System, Accuride 1332 (with 35 mm Hinge Kit) Length: 710 mm (28")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.24.471

  Product Title: Pocket Door System, Accuride 1332 (with 35 mm Hinge Kit), Length: 710 mm (28")

  Category: Pocket Door System, Accuride 1332 (with 35 mm Hinge Kit),

  Item Details �

  - Pocket width: 51�64 mm (2"�2 1/2") depending on door thickness

  - Area of application : For pivot sliding doors

  - For door material : wood

  - Set : Set with tracks

  - For door width : ?660 mm

  - For door height : ?1,981 mm

  - Note on door height : for doors 914 - 1981 mm (36 - 78") tall, additional hinges required

  - For door weight : ?34 kg

  - Load bearing capacity : 75 lbs.

  - For door thickness min. : 3/4 - 1 1/4" (for doors 20 mm (13/16")

  - For door width (inches) : Up to 26"

  - For door height (inches) : Up to 78" for doors (36 - 78") tall, addtional hinges required

  - Material/finish : Black

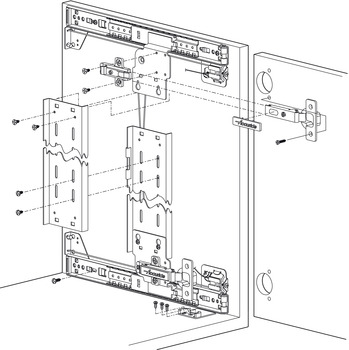

  - Installation : Vertically mounted concealed doors

  - Supplied with:

  - 35 mm hinge kit

  - Slide mounting hardware kit

  - Mounting instructions

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Accuride CB1332 and CB1432 Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page�7.122



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.105-7.106.pdf

  Hafele 408.24.471, 408-24-471, 40824471, 408.24


  Specifications/Hafele Catalog - Page# FC7.166: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Hinge Carrier Strip Kit, for Accuride 1332/1432 Pivot Pocket Door (choose one):


  • Black Zinc

    408.24.060 408.24.061

    Click to order Click to order



  Connector Clip Kit, for Accuride 1332/1432 Pivot Pocket Door (choose one):


  • undefined

    408.24.062

    Click to order



  Optional Accessories:



  • 40 mm (1 5/8") Hinge Kit, for Accuride 1332/1432 Pivot Pocket Door
