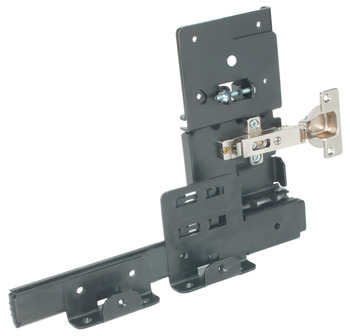

Hafele 408.34.366 Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket Length: 659 mm (26")

Product Information

• Description

  Hafele 408.34.366 Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket„¢
  Length: 659 mm (26")



  Load bearing capacity : (30 lbs.) 13.6 kg

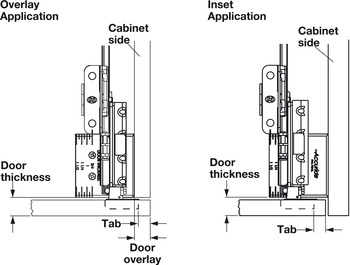

  Overlay : max.: (3/4€¯) 19 mm

  Installation : For vertical installation, full overlay mounting, full overlay with cabinet side panel thickness 19 mm

  Features : 40 mm hinges

  Material : Steel

  Finish : Zinc

  Color : Black

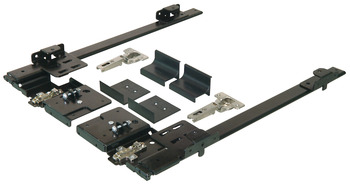

  Supplied with :

  2 slides with attached base plate

  2 hinges and plates

  Skid blocks

  Cover

  Mounting screws

  Installation instructions





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.102-7.102.pdf

  Hafele 408.34.366, 408-34-366, 40834366, 408.34


  Specifications/Hafele Catalog - Page# FC7.159: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
