Hafele 408.35.332 Pocket Door System, Accuride 1234 (Hinges not included) Length: 303 mm (12")

Product Information

• Description

  Manufacturer: Hafele
  Item: 408.35.332

  Product Title: Pocket Door System, Accuride 1234 (Hinges not included), Length: 303 mm (12")

  Category: Pocket Door System, Accuride 1234 (Hinges not included),

  Item Details …

  - Wood follower strip is provided by the customer

  - Cut follower strip is 6” shorter than door height

  - Maximum thickness for follower strip is 19 mm (3/4”)

  - Detent out

  - Cut follower strip is 6” shorter than door height

  - Maximum thickness for follower strip is 19 mm (3/4”)

  - Detent out

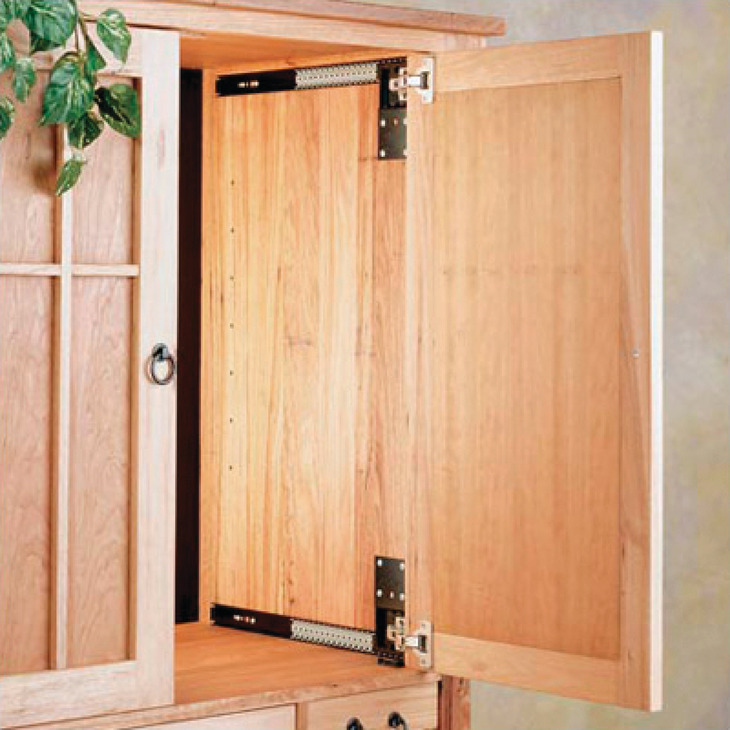

  - Area of application : For concealed doors in entertainment centers, wall units, and cabinets

  - For door material : wood

  - Set : Set with tracks

  - For door width : ?1,067 mm

  - Note on door width : Horizontal max. 42", vertical max. 24"

  - For door height : ?1,067 mm

  - Note on door height : Horizontal max. 24", vertical max. 42"

  - For door weight : ?13.6 kg

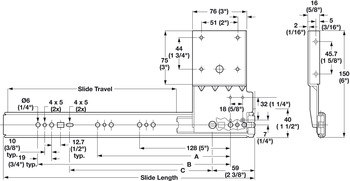

  - Dim. A :

  - Load bearing capacity : 30 lbs.

  - Dim. A :

  - For door thickness min. : 5/8"

  - For door thickness max. : 1 1/4"

  - For door thickness : 16?–?31.75 mm

  - Material/finish : Black, Zinc

  - Installation : Wood follower strip is provided by the customerCut follower strip is 6” shorter than door heightMaximum thickness for follower strip is 19 mm (3/4”)Detent out

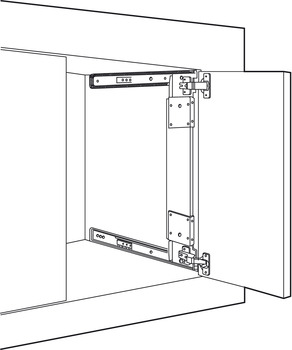

  - Supplied with:

  - 2 slides

  - 2 pivot blocks and all mounting hardware


  Additional Information …

  Please order door fixing sets (including concealed hinges, mounting plates, door stops and all fixing screws) separately

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Accuride 123 and 1234 Pocket Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.116



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.100-7.101.pdf

  Hafele 408.35.332, 408-35-332, 40835332, 408.35


  Specifications/Hafele Catalog - Page# FC7.156: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Pocket Door Component, Accuride 1234 Hinge Kit (choose one):


  • for inset frameless or overlay face frame door, Accuride 4180-0391-XE; 35 mm for inset frameless door, Accuride 4180-0313-XE; 40 mm for overlay frameless door, Accuride 4180-0314-XE; 40 mm

    408.24.030 408.24.031 408.24.032

    Click to order Click to order Click to order
