Hafele 408.35.347 Pocket Door System, Accuride 1234 (Hinges not included) Length: 456 mm (18")

Product Information

• Description

  Hafele 408.35.347 Pocket Door System, Accuride 1234 (Hinges not included)
  Length: 456 mm (18")

  Additional items required to complete installation:
  Pocket Door Component, Accuride 1234 Hinge Kit

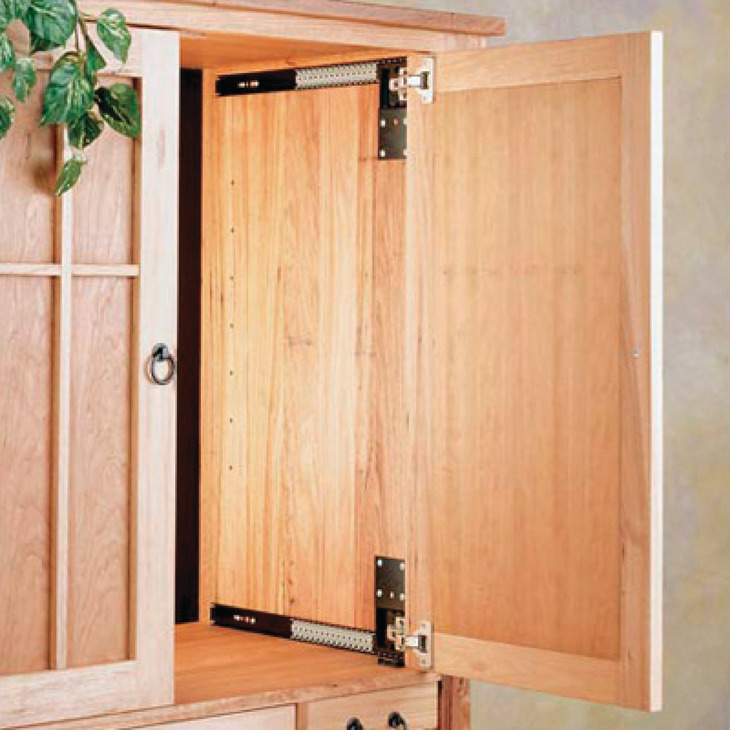

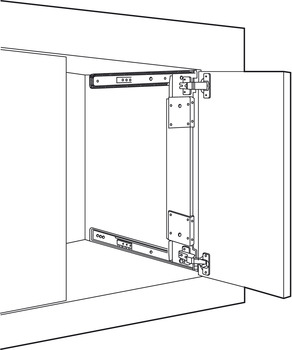

  Suitable for : Concealed doors in entertainment centers, wall units, and cabinets

  Features : Without hinges (sold separately)

  Load bearing capacity : (30 lbs) 13.6 kg

  For door thickness : 5/8 - 1 1/4" (16 - 31.75 mm)

  For door height : Hoizontal max. 24" Vertical max. 42"

  For door width : Hoizontal max. 42" Vertical max. 24"

  Installation : Wood follower strip is provided by the customer
  Cut follower strip is 6€ shorter than door height
  Maximum thickness for follower strip is 19 mm (3/4€)
  Detent out

  Material : Steel

  Finish : Zinc

  Color : Black

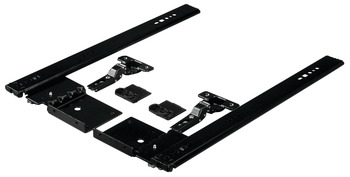

  Supplied with :

  2 slides

  2 pivot blocks and all mounting hardware

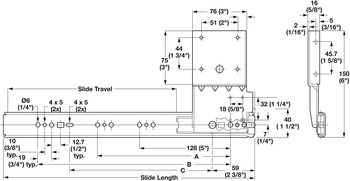

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.100-7.101.pdf

  Hafele 408.35.347, 408-35-347, 40835347, 408.35


  Specifications/Hafele Catalog - Page# FC7.156: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
