Manufacturer: Hafele
Item: 408.35.373

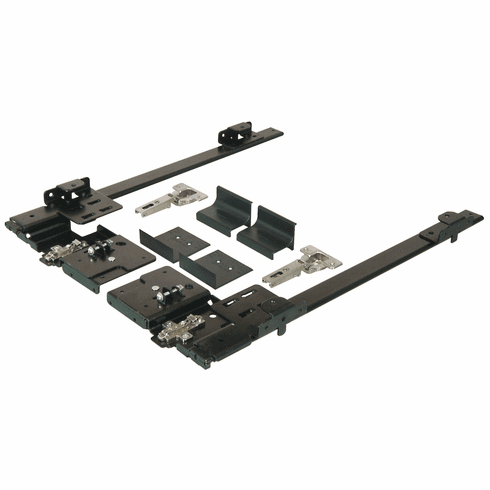

Product Title: Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket™, for wooden pivot sliding doors in TV and Hi-Fi cabinets and wall units, for door weight up to 14 kg, door height up to 1,065 mm, Length: 303 mm (12")
Category: Wooden Pivot Sliding Doors, Accuride 1321 Pro Pocket™, for wooden pivot sliding doors in TV and Hi-Fi cabinets and wall units, for door weight up to 14 kg, door height up to 1,065 mm
Item Details …
- Minimum door stile width of 64 mm (2 1/2”) is required
- Horizontal doors maximum 42” width by 24” height
- Slide rollers run across the back of the doors allowing for the use of sculptured doors, applied moldings, or raised panels
- Auto open feature pushes cabinet doors open the final 32 mm (1 1/4”)
- Hardwood is recommended for the follower (customer supplied)
- Follower length is the interior opening height minus 279 mm (11”)
- Anti-sag adjustment feature allows for the vertical adjustment of the door, assuring smooth opening and closing
- Area of application : For TV and Hi-Fi cabinets and wall units
- For door material : wood
- Set : Set with tracks
- Number of doors : 1.00
- For door width : ?610 mm
- For door height : ?1,065 mm
- For door weight : ?14 kg
- Load bearing capacity : 30 lbs.
- Overlay distance : max.: 3/4”
- For door thickness : 19?–?38 mm
- Material/finish : Steel, Black, Zinc
- Installation : For vertical installation, full overlay mounting, full overlay with cabinet side panel thickness 19 mm
- Supplied with:
- 2 slides with attached base plate
- 2 hinges and plates
- Skid blocks
- Cover
- Mounting screws
- Installation instructions
