Hafele 408.36.366 Pocket Door System, Accuride 123 (35 mm hinges included) Length: 659 mm (26")

Product Information

• Description

  Hafele 408.36.366 Pocket Door System, Accuride 123 (35 mm hinges included)
  Length: 659 mm (26")

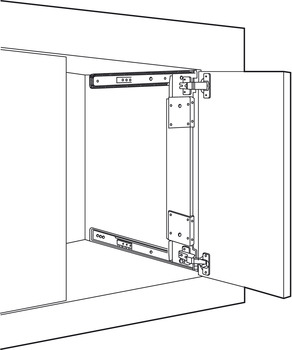

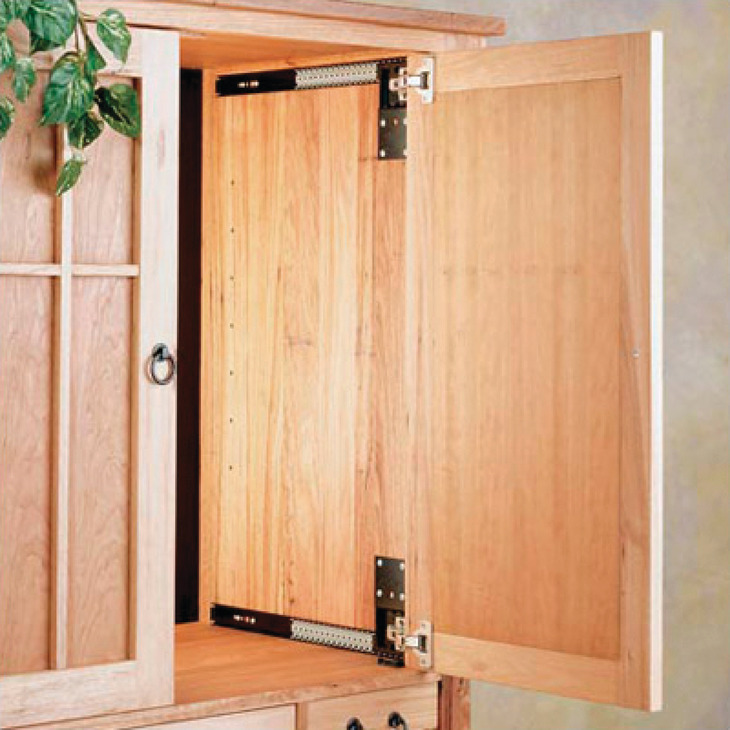

  Suitable for : Concealed doors in entertainment centers, wall units, and cabinets

  Features : With 35 mm hinges

  Load bearing capacity : (30 lbs) 13.6 kg

  For door thickness : 5/8 - 1 1/4" (16 - 31.75 mm)

  For door height : Horizontal max. 24" Vertical max. 42"

  For door width : Hoizontal max. 42" Vertical max. 24"

  Installation : Wood follower strip is provided by the customer
  Cut follower strip is 6�� shorter than door height
  Maximum thickness for follower strip is 19 mm (3/4��)
  Detent out

  Material : Steel

  Finish : Zinc

  Color : Black

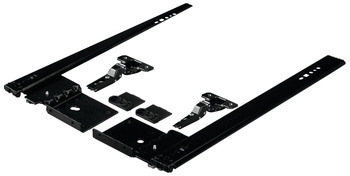

  Supplied with :

  2 slides

  2 pivot blocks and all mounting hardware

  2 clip on hinges





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_7.100-7.101.pdf

  Hafele 408.36.366, 408-36-366, 40836366, 408.36


  Specifications/Hafele Catalog - Page# FC7.158: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Sliding & Roller Shutters Catalog Return to: All Hafele Catalogs
