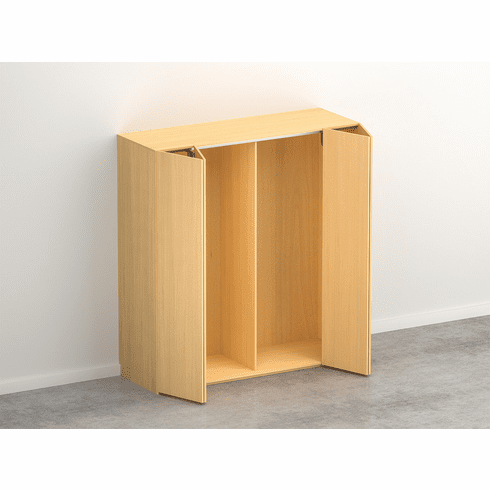

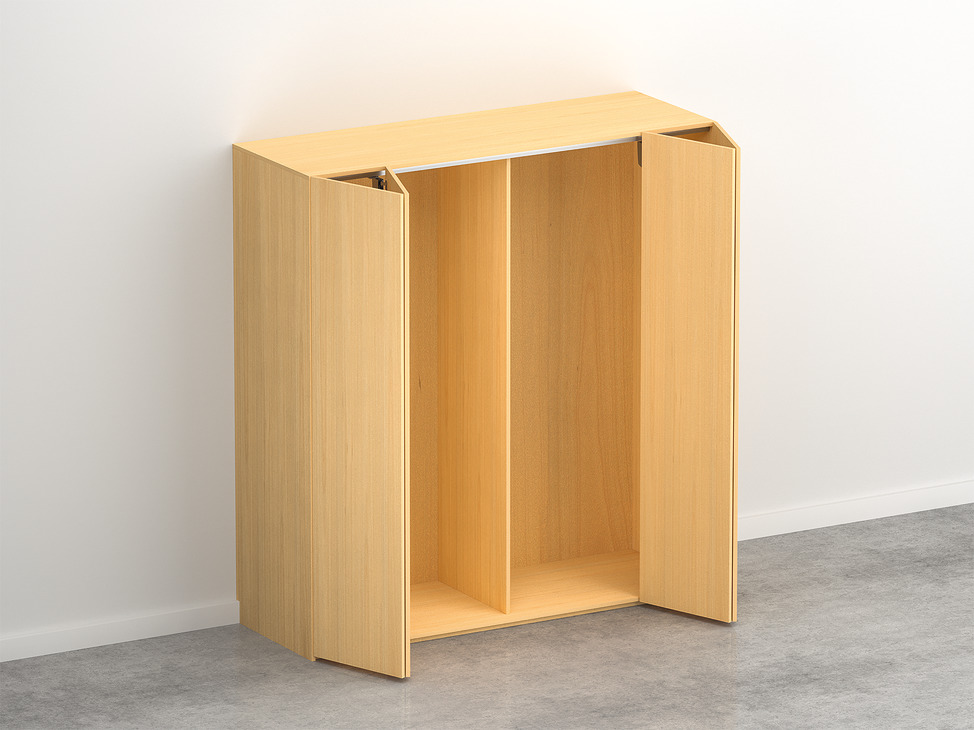

Hafele 409.36.033 Slido F-Fold61 25A, with standard hinge, without covercap, right hand, 25 kg

Product Information

• Description

  Manufacturer: Hafele
  Item: 409.36.033

  Product Title: Sliding door fitting, For Slido F-Fold 61 25A/50A Set, For wooden/aluminum folding sliding doors, With standard center hinge without cover cap, right, door weight 55 lbs.

  Category: Sliding door fitting, For Slido F-Fold 61 25A/50A Set, For wooden/aluminum folding sliding doors

  Item Details …

  - Ideal for laterally connected doors

  - Set : Set without tracks

  - Length (inch) : 2' 1 19/32"

  - Area of application : for wooden doors,for aluminium frame doors with frame width >50 mm

  - For door material : wood, aluminium frame

  - For door thickness : ?16 mm

  - Note on door weight : 12.5/25 kg (25/50 kg per pair of doors)

  - Note on door width : 25 kg: ?450 mm,50 kg: ?600 mm

  - Material/finish : Rollers: Plastic

  - Running gear version : 4 rollers

  - Running gear guided by : Ball bearing

  - Adjustment facility : Adjustable via hinges

  - Door adjustment via : Hinges

  - Installation : Right

  - Model series : F-Fold61

  - Order reference

  - The running tracks, the fixing material and the concealed hinges for lateral connection are not included in the set. Please order separately.

  - Supplied with:

  - 1 running gear with 1 concealed hinge for right door

  - 4 panel to panel hinges


  Additional Information …

  From door leaf weight ?25 kg, door leaf height ?2400 mm or door leaf width ?450 mm, the use of the guide rail below is recommended.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Slido F-Fold61 25A/50A Instructions - Standard Center Hinge

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.99



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, For Screw Mounting (choose one):


  • For Slido F-Fold 61 25A/50A, Length: 1500 mm For Slido F-Fold 61 25A/50A, Length: 2500 mm

    409.31.601 409.31.605

    Click to order Click to order



  Optional Accessories:



  • Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated
