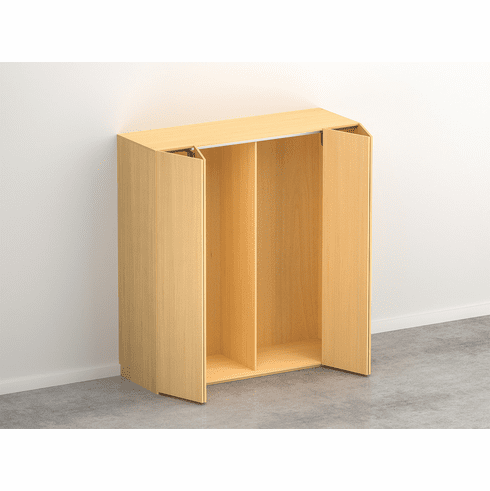

Hafele 409.36.045 Slido F-Fold61 25A, with adjustable hinge, with covercap, right hand, 25 kg

Product Information

• Description

  Manufacturer: Hafele
  Item: 409.36.045

  Product Title: Sliding door fitting, For Slido F-Fold 61 25A/50A Set, For wooden/aluminum folding sliding doors, With adjustable center hinge with white cover cap, right, door weight 55 lbs.

  Category: Sliding door fitting, For Slido F-Fold 61 25A/50A Set, For wooden/aluminum folding sliding doors

  Item Details …

  - Ideal for laterally connected doors

  - Set : Set without tracks

  - Length (inch) : 2' 1 19/32"

  - Area of application : for wooden doors,for aluminium frame doors with frame width >50 mm

  - For door material : wood, aluminium frame

  - For door thickness : ?16 mm

  - Note on door weight : 12.5/25 kg (25/50 kg per pair of doors)

  - Note on door width : 25 kg: ?450 mm,50 kg: ?600 mm

  - Material/finish : Rollers: Plastic

  - Running gear version : 4 rollers

  - Running gear guided by : Ball bearing

  - Adjustment facility : Adjustable via hinges

  - Door adjustment via : Hinges

  - Installation : Right

  - Model series : F-Fold61

  - Order reference

  - The running tracks, the fixing material and the concealed hinges for lateral connection are not included in the set. Please order separately.

  - Supplied with:

  - 1 running gear with 1 concealed hinge for right door

  - 4 adjustable concealed hinges

  - 1 cover cap


  Additional Information …

  From door leaf weight ?25 kg, door leaf height ?2400 mm or door leaf width ?450 mm, the use of the guide rail below is recommended.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Slido F-Fold61 25A/50A Instructions - Standard Center Hinge

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.99



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, For Screw Mounting (choose one):


  • For Slido F-Fold 61 25A/50A, Length: 1500 mm For Slido F-Fold 61 25A/50A, Length: 2500 mm

    409.31.601 409.31.605

    Click to order Click to order



  Optional Accessories:



  • Concealed Hinge, Salice 200 Series, 110° Opening Angle, Full Overlay, Nickel plated
