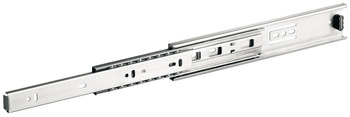

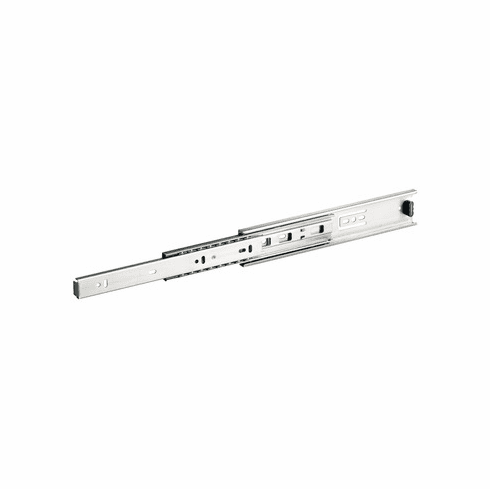

Hafele 420.42.055 304 Stainless Steel Side Mounted Slide, Full Extension, 64 - 92 lbs Weight Capacity 22" Length, 68 lbs

Product Information

• Description

  Hafele 420.42.055 304 Stainless Steel Side Mounted Slide, Full Extension, 64 - 92 lbs Weight Capacity
  22" Length, 68 lbs



  Load bearing capacity : (68 lbs.) 31 kg

  Installation : 1/2" side space required

  Features : Lever disconnect

  Type of pull out : Full extension with hold-in detent

  Profile height : (1 1/2") 37 mm

  Material : Stainless steel

  Quality : 1.4301/AISI 304

  C : (12 5/8") 320 mm

  D : (16 3/8") 416 mm

  E : (19 1/2") 492 mm

  G : (13 7/8") 352 mm

  T : 448 mm



  Optional items:
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive, with Nibs
  Zip-R Screw, Flat Countersunk Head, #2 Square Drive


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.81-8.82.pdf

  Hafele 420.42.055, 420-42-055, 42042055, 420.42
