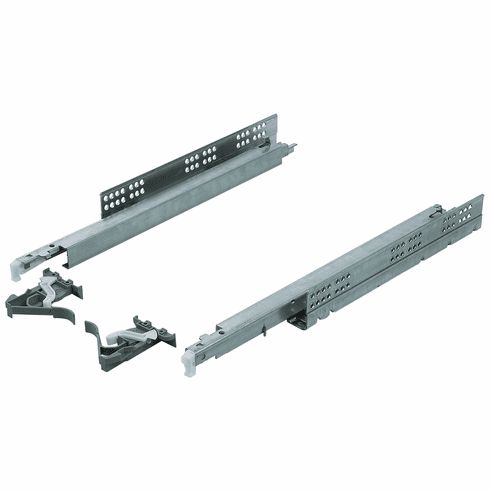

Hafele 421.23.845 Salice A6557 Futura Push Slide, for Frameless, Full Extension, 50 lbs length: 450 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.23.845

  Product Title: Salice A6557 Futura Push Slide, for Frameless, Full Extension, 50 lbs, length: 450 mm

  Category: Salice A6557 Futura Push Slide, for Frameless, Full Extension, 50 lbs,

  Item Details …

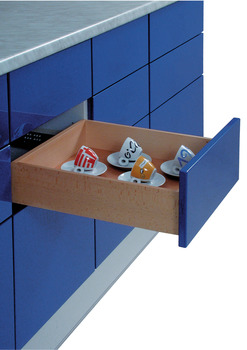

  - Slight pressure on the drawer front opens the drawer

  - “Push” mechanism is fully integrated into the slide

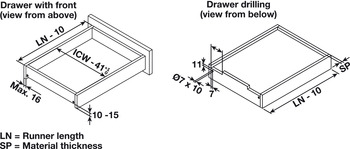

  - For drawer with front application, the setback is 2 mm plus the thickness of the drawer box material unless the drawer is notched. If it is notched, the setback, the setback is 2 mm.

  - Front clip disconnect for easy drawer insertion and removal

  - Nominal length : 300.00 mm

  - Model series : A6557 Futura Push Frameless Mounted

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Push to open

  - Load bearing capacity : 22.68 kg

  - Load bearing capacity : Per pair: 50 lbs

  - Adjustment facility : Height adjustment + 2.5 mm

  - Material : Steel

  - Color/finish : Zinc

  - Mounting : Frameless

  - Installation : Frameless

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.61



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.29-8.31.pdf

  Hafele 421.23.845, 421-23-845, 42123845, 421.23


  Specifications/Hafele Catalog - Page# FC8.16: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Six-Way Adjustable Disconnect Clips, for Salice Futura Slides (choose one):


  • Orange, 6-way adjustable

    421.23.001

    Click to order



  Height Adjustable Disconnect Clips, for Salice Futura Slides (choose one):


  • Gray

    421.23.000

    Click to order
