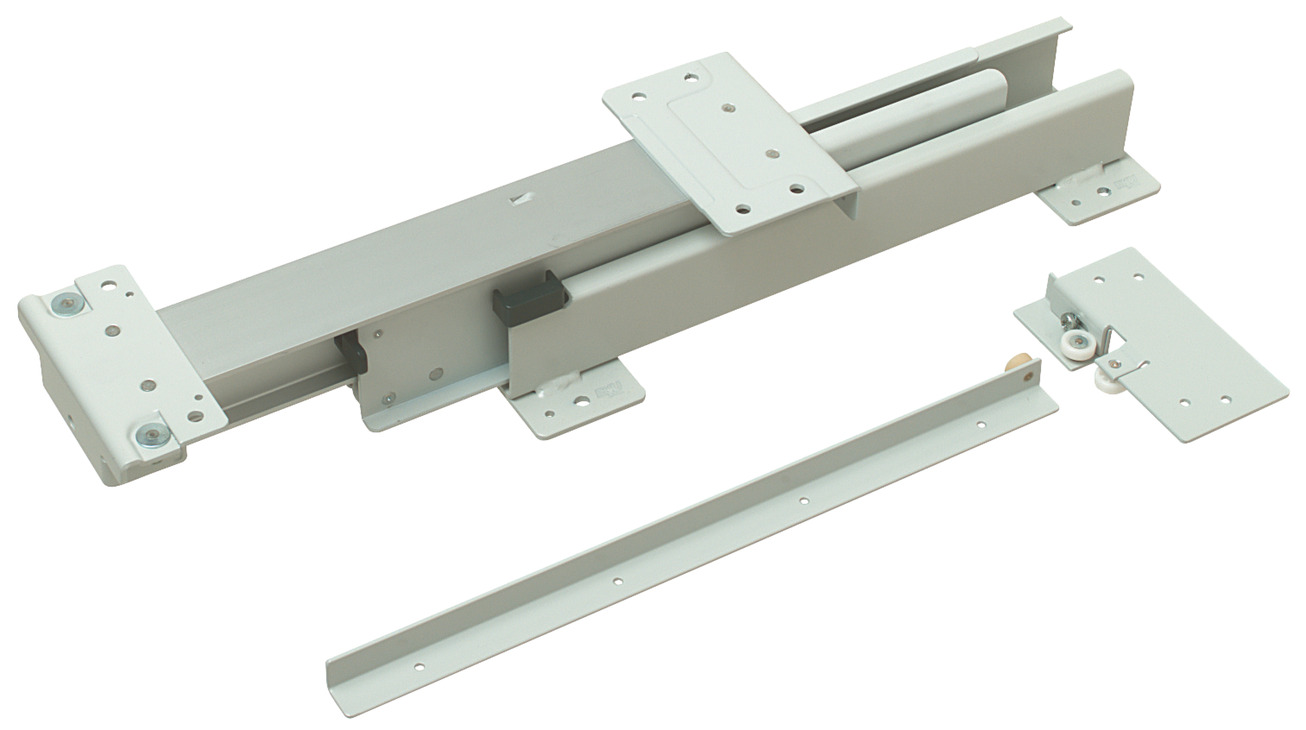

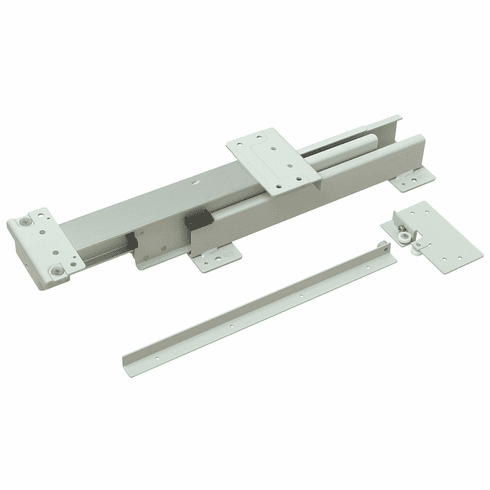

Hafele 421.48.781 EKU Forte 170/340 Top/Bottom Mounted Cabinet Slide, Partial Extension, 374 lbs Weight Capacity 30 11/16" installed length, 29 1/8" extension length

Product Information

• Description

  Hafele 421.48.781 EKU Forte 170/340 Top/Bottom Mounted Cabinet Slide, Partial Extension, 374 lbs Weight Capacity
  30 11/16" installed length, 29 1/8" extension length



  Model series : 170/340

  Load bearing capacity : (374 lbs) 170 kg

  Adjustment : 3 mm (+2/-1) height adjustment with adjusting screw, permitting alignment of the front panel

  Features : 8 ball-bearing mounted plastic covered steel rollers
  2 friction bearing mounted steel rollers
  1 friction bearing mounted cylinder steel roller

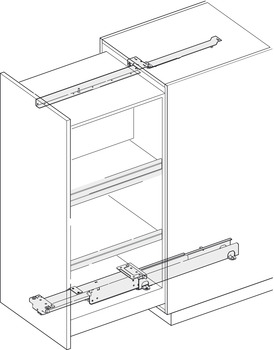

  Mounting : Top/bottom mounted

  Type of pull out : Partial extention

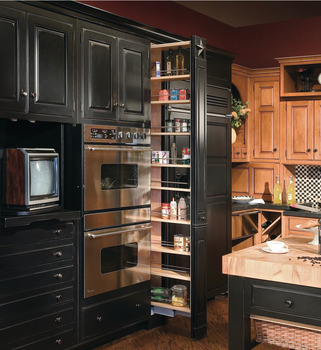

  Application : Pull-out cabinets

  Type of closing : Soft & silent

  Material : Steel

  Color : Gray RAL 7035



  Optional items:
  Easy Close Mechanism, for EKU Forte 170/340
  Connection Set, for EKU Forte 170/340
  Decorative Side Rail, for EKU Forte 170/340
  Mounting Jig, for EKU Forte 170/340


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.94-8.95.pdf

  Hafele 421.48.781, 421-48-781, 42148781, 421.48


  Specifications/Hafele Catalog - Page# FC8.90: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
