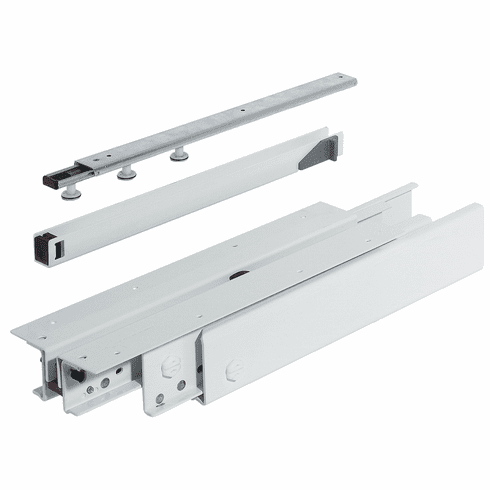

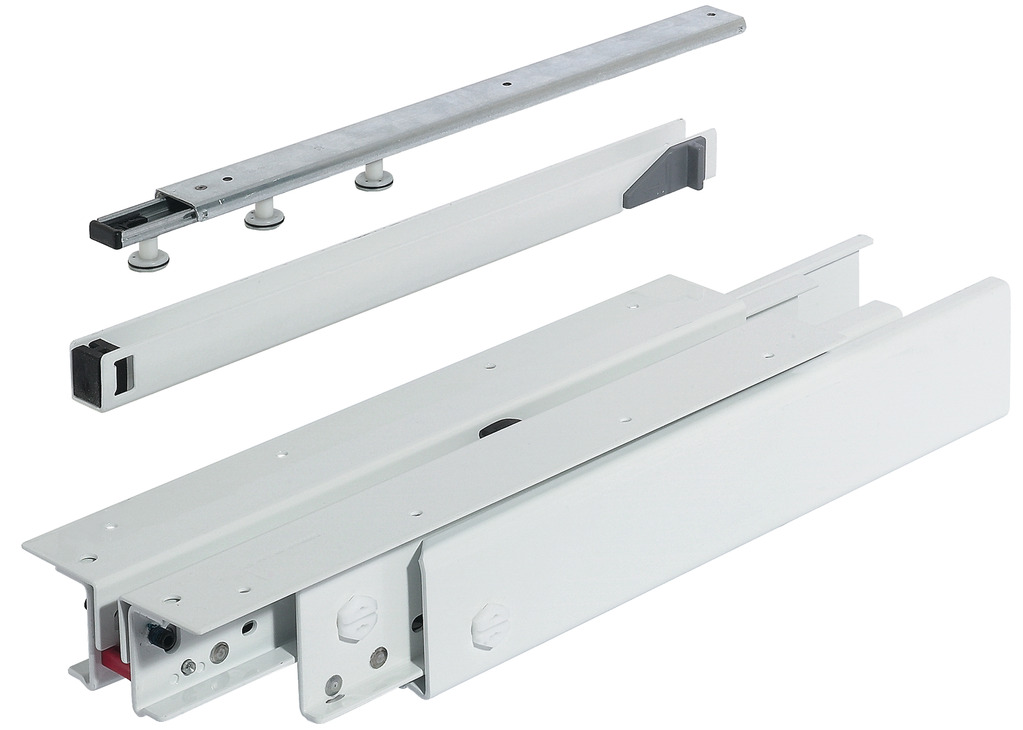

Hafele 421.50.766 FR 777 Top/Bottom Mounted Pull-Out Cabinet Slide, Full Extension, 440 lbs Weight Capacity Installation Length: 650 mm (25 1/2")
Product Information
Description
Hafele 421.50.766 FR 777 Top/Bottom Mounted Pull-Out Cabinet Slide, Full Extension, 440 lbs Weight Capacity
Installation Length: 650 mm (25 1/2")Load bearing capacity : Including cabinet and useful load: (440 lbs) 200 kg Features : Rear stop
Full extension

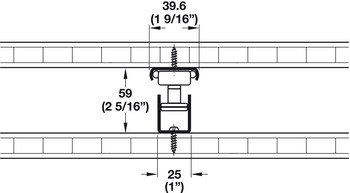

Ceiling guide for lateral stabilityMounting : For floor mounting Material : Guides: Steel, epoxy-coated; Rollers: Steel, Polyamide; Stops: Plastic Supplied with : 4 plastic coated steel ball bearing rollers
6 plastic rollers
Ball guide with rollers
U-profile
Optional items:
Easy Close Mechanism, for Top/Bottom Mounted Pull-Out Cabinet SlideSpecifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_8.96-8.96.pdfHafele 421.50.766, 421-50-766, 42150766, 421.50 Specifications/Hafele Catalog - Page# FC8.92:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
