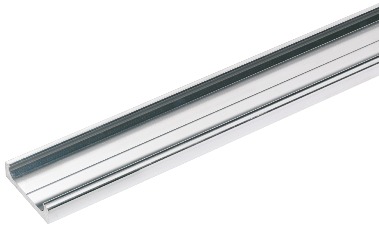

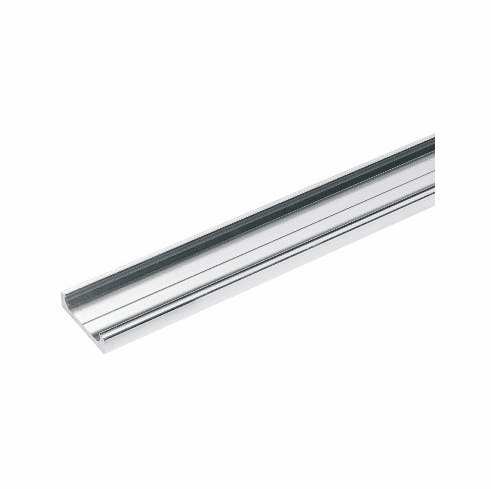

Hafele 421.59.101 Track, Accuride 115RC Linear Motion Track System, 265 Weight Capacity Length: 94"

Product Information

• Description

  Manufacturer: Hafele
  Item: 421.59.101

  Product Title: Track, Accuride 115RC Linear Motion Track System, 265 Weight Capacity, load bearing capacity up to 120 kg, Length: 94"

  Category: Track, Accuride 115RC Linear Motion Track System, 265 Weight Capacity, load bearing capacity up to 120 kg

  Item Details …

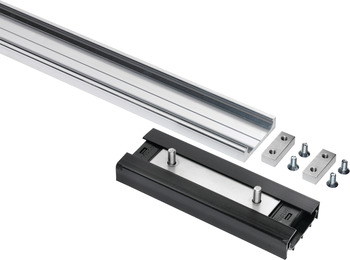

  - Linear Motion Track System is a unique movement solution consisting of lightweight aluminum tracks and re-circulating ball carriages which provide guidance, movement and positioning for screens, panels, partitions or other components in industrial, commercial and institutional applications.Weight capacity: Up to 265 pounds

  - • Track available in two lengths: 1.2 m (47") and 2.4 m (94")

  - • Corrosion-resistant track may be cut down to the desired length or butted together to extend to any length

  - • Re-circulating ball carriages in two options:- Stainless steel ball bearing carriage – provides the greatest load capacity- Polymer ball bearing carriage – grease-free with smooth and quite movement

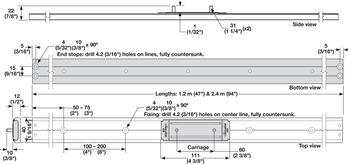

  - • Tracks have drilling marks for both the fixing holes and end stops

  - Material : Aluminum 6000 series

  - Load bearing capacity : 265 lbs

  - Area of application : For sliding objects horizontally (cabinets, claddings, ...)

  - Version : Not drilledcan be cut or extended to required lengthcorrosion resistant, dust and dirt repelling

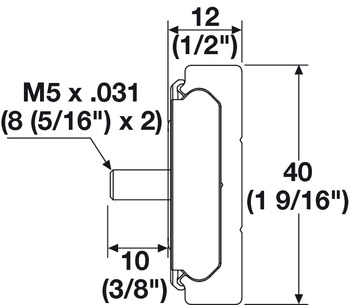

  - Installation : For screw fixing


  Additional Information …

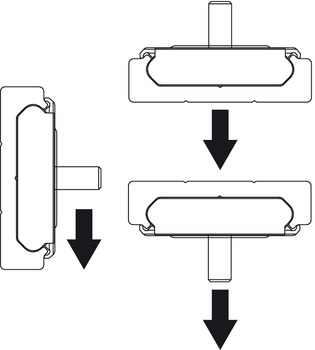

  Weight capacity is based on the type and number of ball carriages. See the Load Rating tab for more information. Due to the extensive variety of applications and possible orientations for this product, we recommend that customers first test this product in the intended application. This product is not recommended for high-torque applications.
