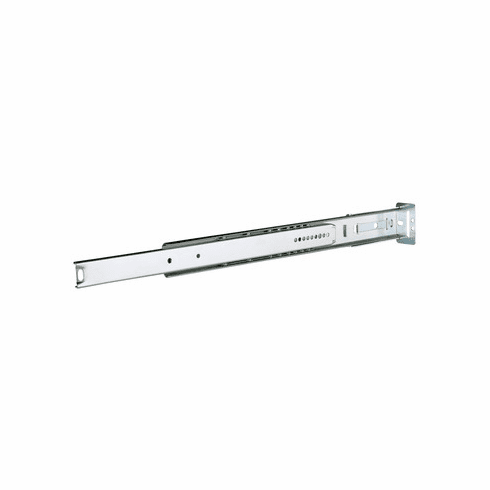

Hafele 422.00.555 Accuride 1029 Center Mounted Slide, 3/4 Extension, 35 lbs Weight Capacity 22 7/8" length cabinet member

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.00.555

  Product Title: Accuride 1029 Center Mounted Slide, 3/4 Extension, 35 lbs Weight Capacity, 22 7/8" length cabinet member

  Category: Accuride 1029 Center Mounted Slide, 3/4 Extension, 35 lbs Weight Capacity,

  Item Details …

  - Features concealed center bottom mount (no side clearance required)

  - Load bearing capacity : 16.00 kg

  - Load bearing capacity : 35 lbs

  - Mounting : Center mounted

  - Version : Friction disconnect

  - Color/finish : Zinc

  - Area of application : A concealed undermount slide for small shallow drawers in lightduty applicationsRecommended for drawers up to 16" wide

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Center mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 1029 Quick Reference Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.83



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.46-8.46.pdf

  Hafele 422.00.555, 422-00-555, 42200555, 422.00


  Specifications/Hafele Catalog - Page# FC8.32: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:

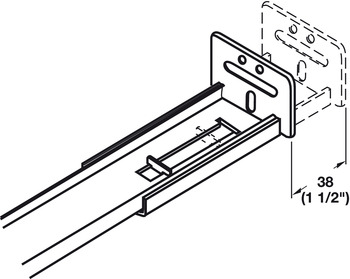

  • Rear Mounting Bracket (Top of Slide Mounting), for Accuride 1029 Center Mounted Slide
  • Rear Mounting Bracket (Bottom of Slide Mounting), for Accuride 1029 Center Mounted Slide
