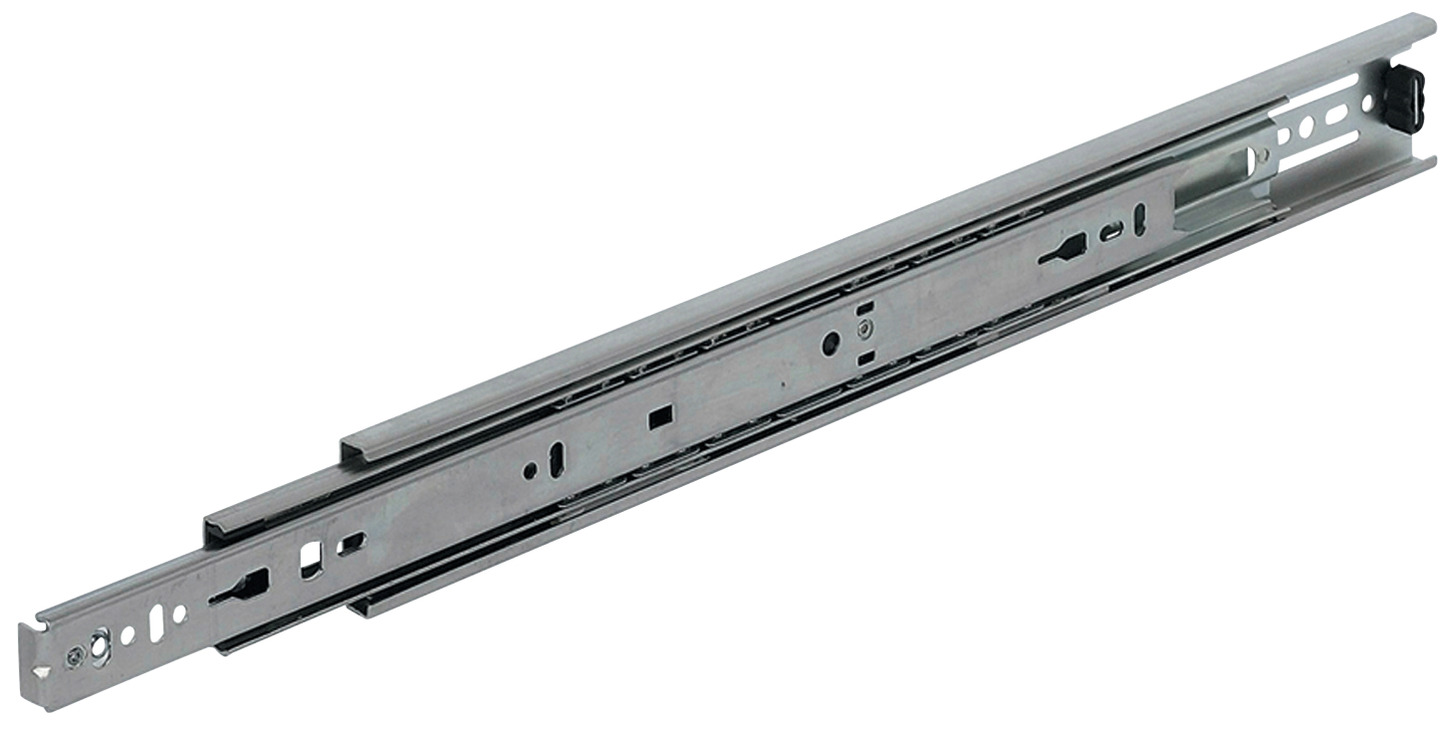

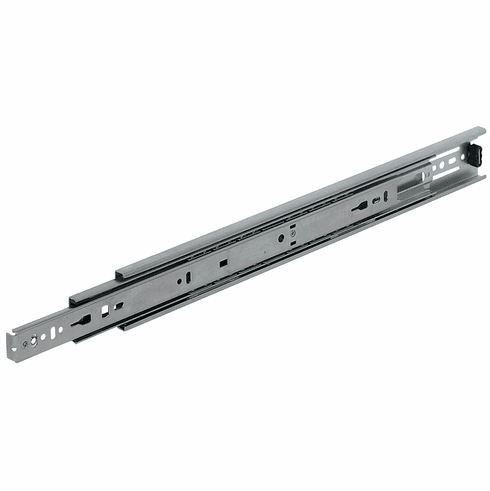

Hafele 422.04.464 Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Bulk pack, black, 18" installed and extension length

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.04.464

  Product Title: Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, Bulk pack, black, 18" installed and extension length

  Category: Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity,

  Item Details …

  - Load bearing capacity : 45.00 kg

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side mounted

  - Version : Lever disconnectHold-in detentBHMA certified to Grade 1 HD-100

  - Type of pull out : Full extension

  - Area of application : For drawers up to 610 mm (24") wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

  - Load bearing capacity per pair : 45.00 kg

  - Supplied with:

  - Shop Pack: 1 pair slides, screws & instructions

  - FP Pack: 10 pairs slides, separated

  - Bulk Pack: 10 pairs slides

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.87



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.49-8.50.pdf

  Hafele 422.04.464, 422-04-464, 42204464, 422.04


  Specifications/Hafele Catalog - Page# FC8.36: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides
