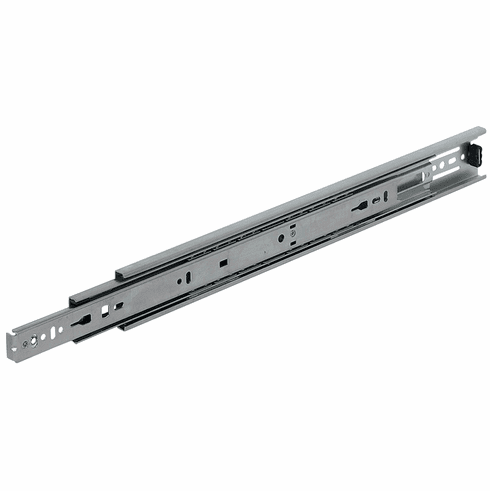

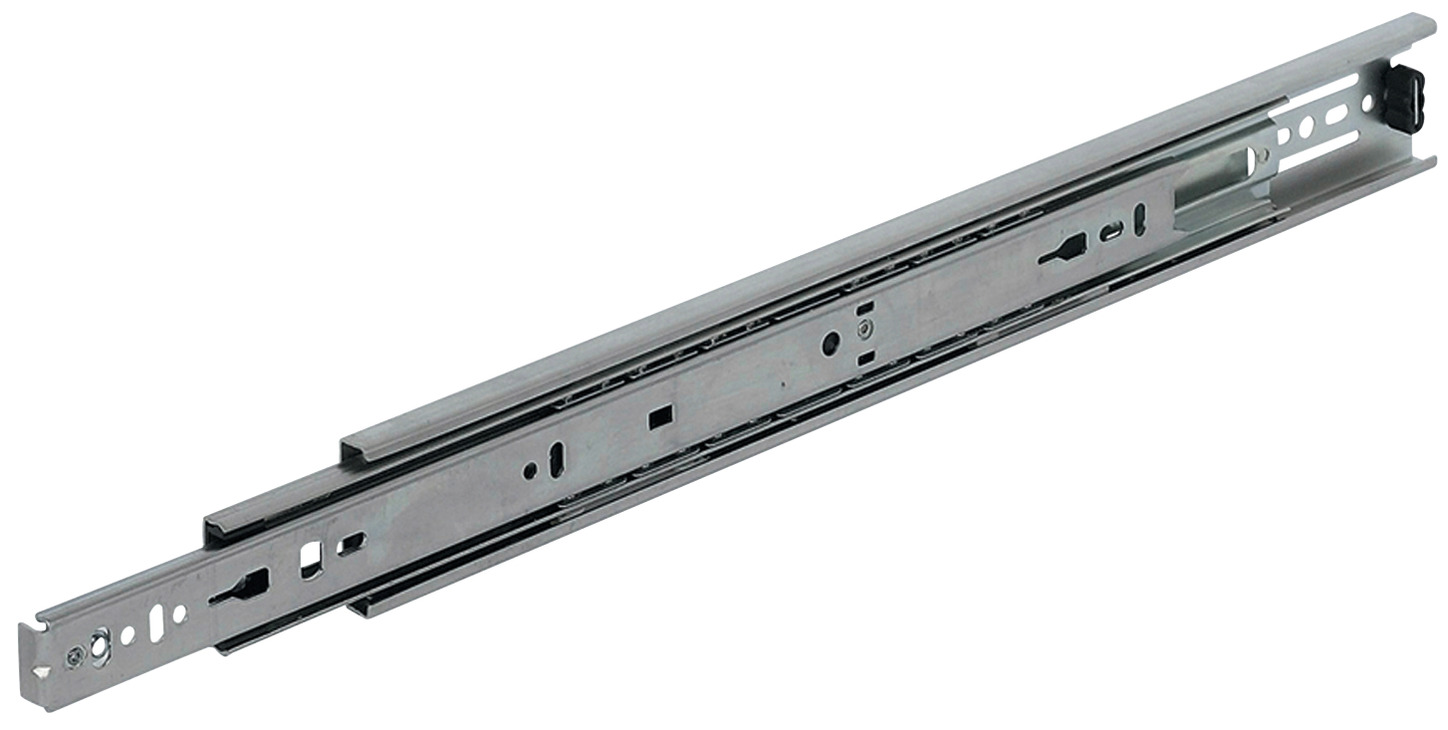

Hafele 422.04.552 Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity Shop pack, zinc, 22" installed and extension length
Product Information
Description
Hafele 422.04.552 Accuride 3832 Telescopic Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity
Shop pack, zinc, 22" installed and extension lengthModel series : 3832 Mounting : Side mounted Type of pull out : Full extension, Telescopic with hold-in detent Application : For drawers up to 610 mm (24") wide Load bearing capacity : Per pair: (100 lbs) 45 kg Features : Lever disconnect
Hold-in detent
BHMA certified to Grade 1 HD-100Material : Steel
Optional items:
Optional Face Frame Bracket, for Accuride 3832 and 3834 SlidesSpecifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_8.49-8.50.pdfHafele 422.04.552, 422-04-552, 42204552, 422.04 Specifications/Hafele Catalog - Page# FC8.36:
