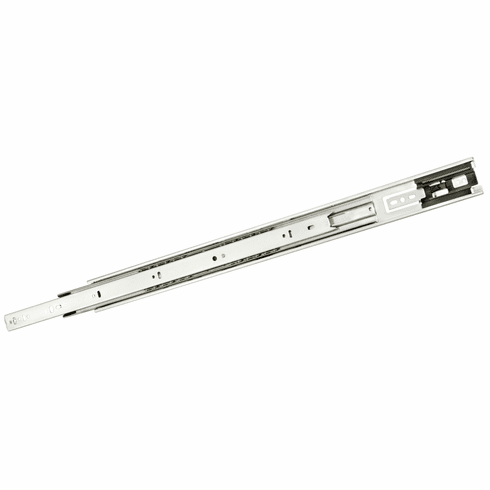

Hafele 422.04.685 Accuride 3832TR Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity 26"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.04.685

  Product Title: Accuride 3832TR Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, With extension mechanism, 26"

  Category: Accuride 3832TR Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, With extension mechanism

  Item Details …

  - Barrier-free, for people who have difficulty gripping handles and knobs

  - Also for use in cases where the furniture design requires drawer front panels without handles and knobs

  - Push on the drawer front to open or close the drawer

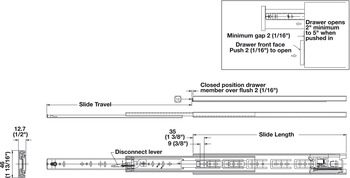

  - Opening mechanism activated by 1/16" (2 mm) travel inward

  - Propels drawers open approximately 2 – 5" (51 - 27 mm) from the closed position

  - Lock-in feature helps keep drawers closed

  - Lever disconnect

  - Cam drawer adjust feature

  - For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening

  - Load bearing capacity : Per pair: 100 lbs

  - Mounting : Side-mounted

  - Version : Can be removed using release lever

  - Color/finish : Zinc plated, Zinc-plated

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406mm (16") wide

  - Removing the running track : without release lever

  - Material : Steel

  - Adjustment facility : Cam drawer adjust feature

  - Installation : Side-mounted

  - Order reference

  - Available also in black, zinc plated or white coated on request from 10 pairs.


  Additional Information …

  The drawer width should not exceed the installation length.
