Manufacturer: Hafele
Item: 422.05.123

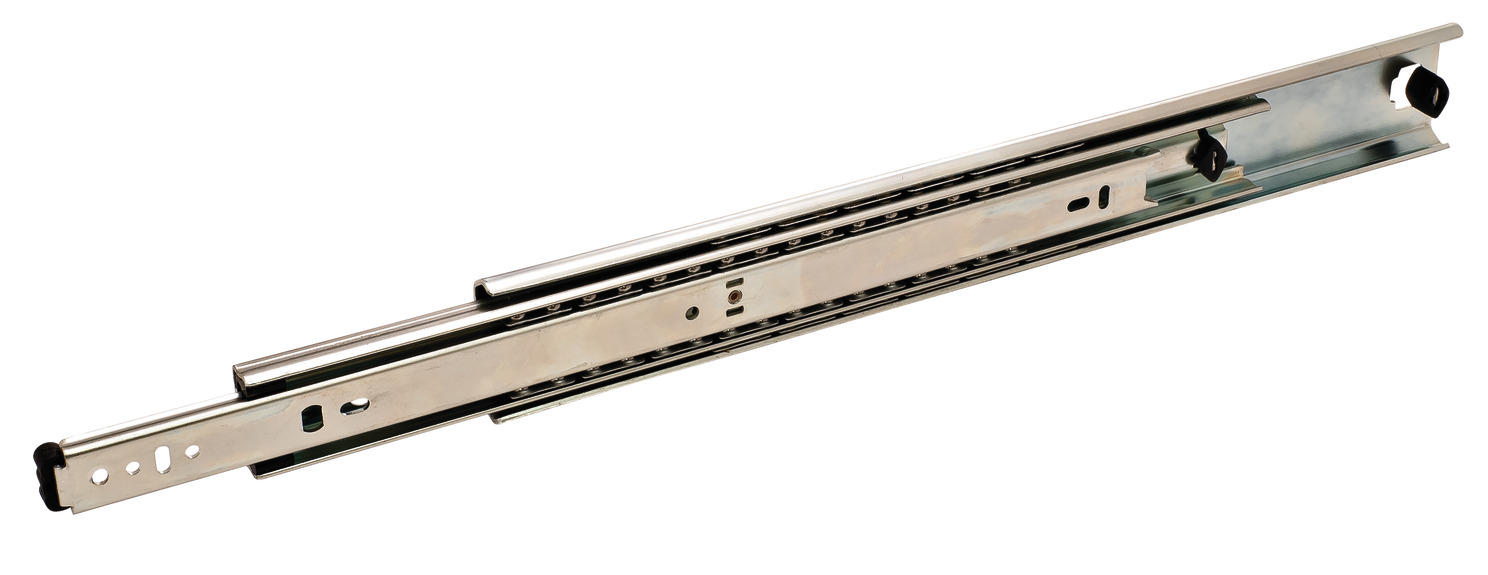

Product Title: Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 175 lbs Weight Capacity, P Pack; 16"; Model C3634-C16ECP6
Category: Accuride 3634EC Easy Close Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel, 175 lbs Weight Capacity,
Item Details …
- Easy-close feature brings drawers to a smooth, gentle close. This mechanism is a more robust design intended for wider drawers and heavier loads up to 175 lbs.
- Out stop silenced for quiet operation.
- 1†over travel for full access to drawer contents
- Accommodates drawers up to 42†wide to expand potential applications
- .78†cross-section width
- Lever disconnect allows for easier drawer removal and reinsertion

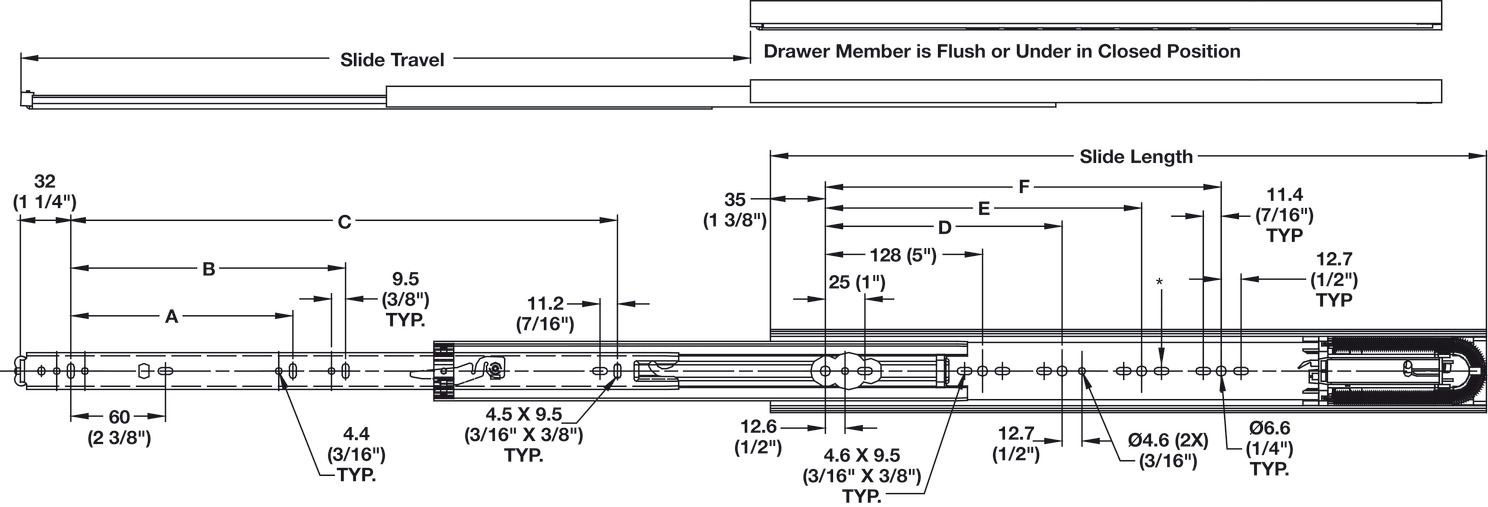

- Outer member hole pattern matches models 3832/3834. The same hole configuration and fastener type are used whether slides are going into a 1/2†or 3/4†side space.
- Slides are unhanded, which also helps speed and ease of installation
- RoHS compliant
- Side space: .78 + .000/-.02 [19.8 mm +0/-.5]
- Recommended Drawer Size: 1 9/16" (39.69 mm) less than the cabinet opening
- Disconnect: Handed lever disconnect
- Easy-close feature brings drawers to a smooth, gentle close
- 14†is full travel
- Extension length : 356.00 mm
- Load bearing capacity : Per pair: 175 lbs
- Mounting : Side or flat mount
- Color/finish : Zinc-plated
- Removing the running track : With release lever
- Material : Steel
- Bearing : Ball bearing
- Width : 53.10 mm
- Width (inch) : .78"
- Height : 19.80 mm
- Height (inch) : 10 3/8"

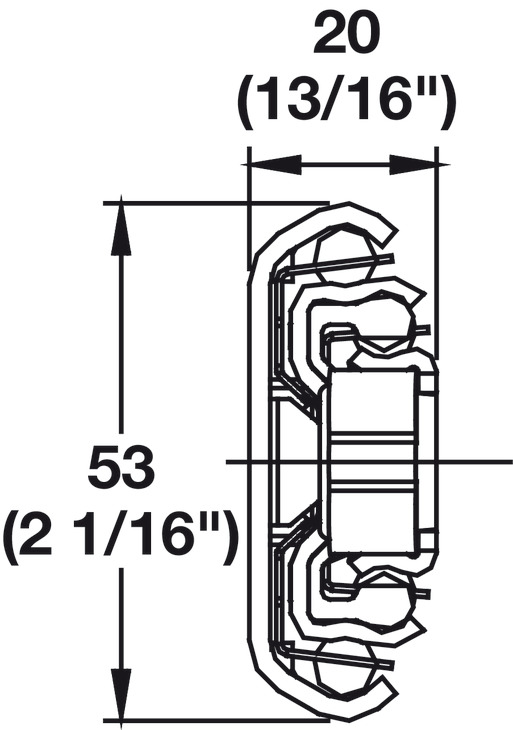

- Dim. (W x H) : 53.1 x 19.8 mm
- Installation : Side or flat mount
- Load bearing capacity per pair : 79.00 kg
- Order reference
- D Pack - Polybag includes one pair of slides with moutning screws.
- P Pack - (Bulk) Packed in 5 pair per box. Mounting hardware needs to be ordered separately.
