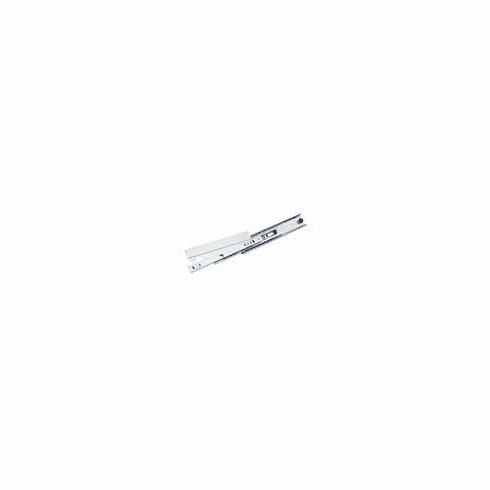

Hafele 422.07.456 Accuride 3640A Telescopic Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel; 75/200 lbs Weight Capacity 18"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.07.456

  Product Title: Accuride 3640A Telescopic Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel; 75/200 lbs Weight Capacity, 18"

  Category: Accuride 3640A Telescopic Heavy Duty Side/Bottom Mounted Slide, 1" Overtravel; 75/200 lbs Weight Capacity,

  Item Details …

  - Oversized ball bearings for heavy loads

  - With 1” overtravel

  - Suitable for commercial or residential cabinet drawers requiring interlock

  - Drawers up to 42” wide

  - Interfaces with central locking system

  - Slides are unhanded, rails are handed

  - Load bearing capacity : Side mounted: 200 lbs)/pair#Bottom mounted: 75 lbs/pair

  - Version : Telescopic with adapter rail mount disconnectOversized ball bearings for heavy loadsFeatures unhanded sides

  - Color/finish : Zinc

  - Type of pull out : Full extension

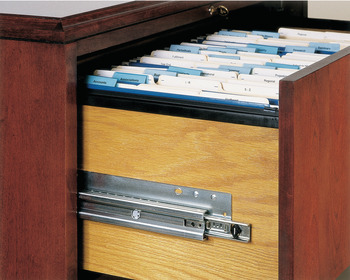

  - Area of application : For large store fixtures, library, and institutional furniture applications

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Width : 352.00 mm

  - Installation : Side/bottom mounted

  - Load bearing capacity per pair : 90.00 kg

  - Supplied with:

  - Mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 3640A Quick Reference Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.105



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.66-8.66.pdf

  Hafele 422.07.456, 422-07-456, 42207456, 422.07
