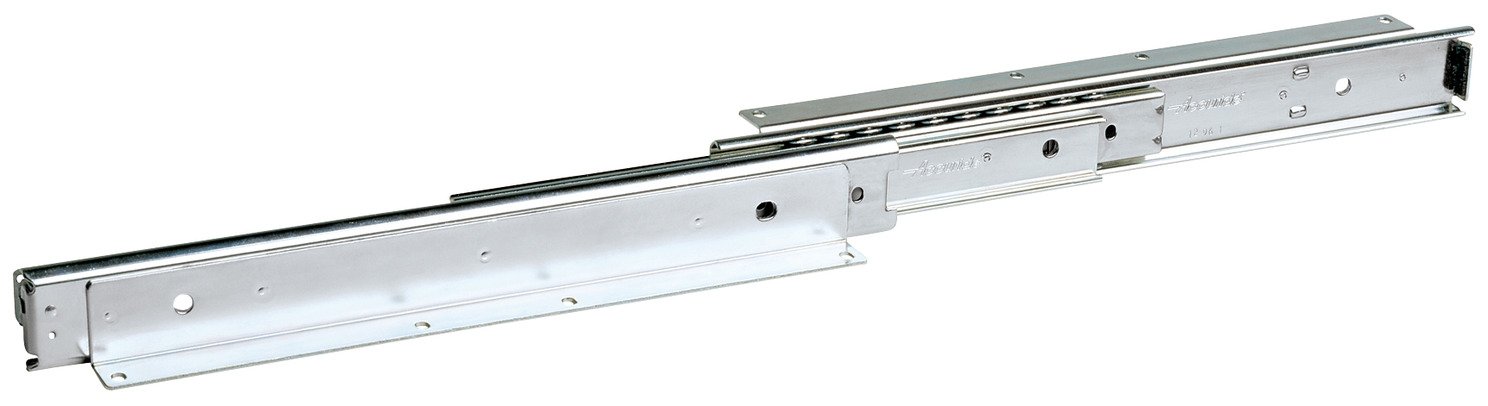

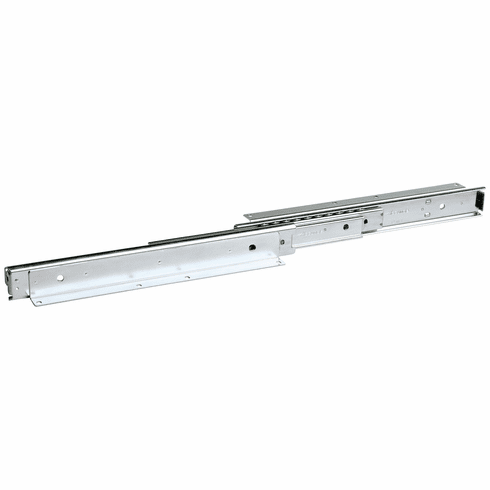

Hafele 422.08.700 Accuride 301-2590 Overview Base Mounted Slide, 7/8" Extension 28"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.08.700

  Product Title: Accuride 301-2590 Overview Base Mounted Slide, 7/8" Extension, 28"

  Category: Accuride 301-2590 Overview Base Mounted Slide, 7/8" Extension,

  Item Details …

  - Load bearing capacity : 70.00 kg

  - Mounting : Base mounted

  - Version : Heavy-duty, non-disconnect with top and bottom mounting brackets

  - Color/finish : Zinc

  - Type of pull out : Over extension

  - Area of application : For kitchen pantry slide-out units, TV shelves, store fixtures, and institutional furniture applicationsFor drawers up to 406 mm (16") wide

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Width : 483.00 mm

  - Installation : Base mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 301-2590 Quick Reference Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.113



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.76-8.76.pdf

  Hafele 422.08.700, 422-08-700, 42208700, 422.08


  Specifications/Hafele Catalog - Page# FC8.60: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
