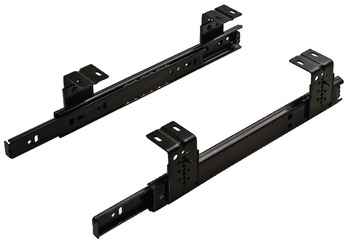

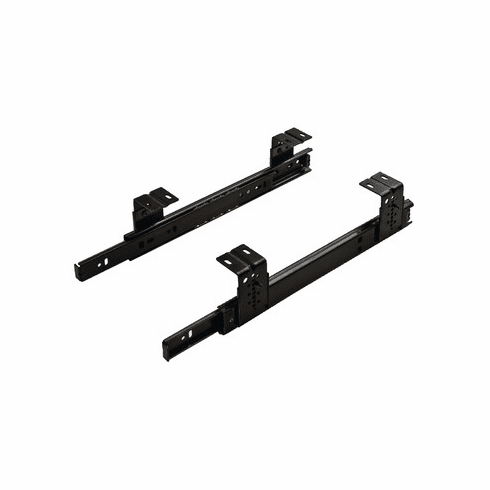

Hafele 422.14.345 Accuride 2109 Keyboard/Pencil Drawer Top Mounted Slide, 3/4" Extension, 75 lbs Weight Capacity 18"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.14.345

  Product Title: Accuride 2109 Keyboard/Pencil Drawer Top Mounted Slide, 3/4" Extension, 75 lbs Weight Capacity, 18"

  Category: Accuride 2109 Keyboard/Pencil Drawer Top Mounted Slide, 3/4" Extension, 75 lbs Weight Capacity,

  Item Details …

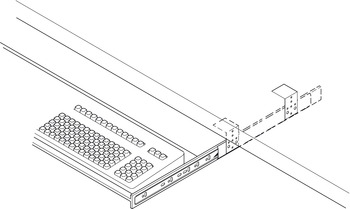

  - Underneath table top, to shelf side

  - Load bearing capacity : Per pair: 75 lbs

  - Mounting : Top mounted

  - Version : With lever disconnect

  - Color/finish : Black

  - Model : 2109

  - Type of pull out : Single extension

  - Area of application : For computer keyboard, printer shelf and pencil drawer applicationsFor drawers up to 406mm (16") wide

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Width : 224.00 mm

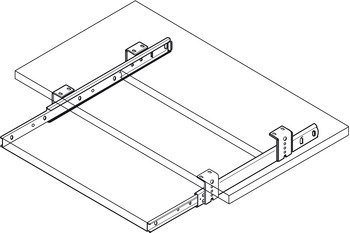

  - Installation : Top mounted

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 2109 Quick Reference Instructions

  Installation instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.108



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.71-8.71.pdf

  Hafele 422.14.345, 422-14-345, 42214345, 422.14


  Specifications/Hafele Catalog - Page# FC8.55: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Chipboard screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized
