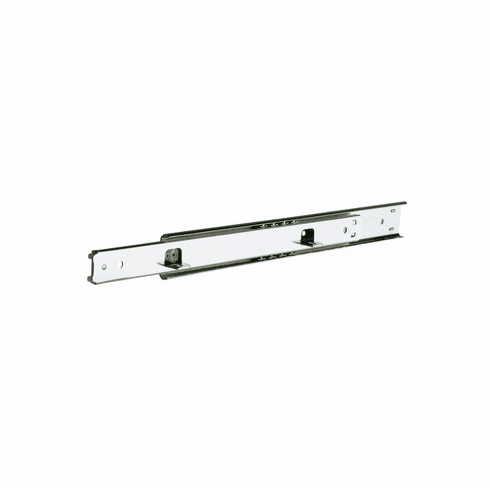

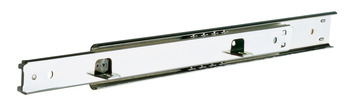

Hafele 422.15.556 Accuride 2002 Two-Way Side Mounted Travel Slide, 3/4" Extension, 50 lbs Weight Capacity 22"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.15.556

  Product Title: Accuride 2002 Two-Way Side Mounted Travel Slide, 3/4" Extension, 50 lbs Weight Capacity, two-way travel, 22"

  Category: Accuride 2002 Two-Way Side Mounted Travel Slide, 3/4" Extension, 50 lbs Weight Capacity, two-way travel

  Item Details …

  - Load bearing capacity : Per pair: 50 lbs

  - Mounting : Side-mounted

  - Version : Internal detent screws in center position

  - Color/finish : Zinc plated, Galvanized

  - Type of pull out : Single extension

  - Area of application : Designed especially for installation in room dividers, kitchen islands, medical carts, pass-through shelves

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Steel

  - Installation : Side-mounted

  - Supplied with:

  - 1 fixing material

  - 1 set of installation instructions


  Additional Information …

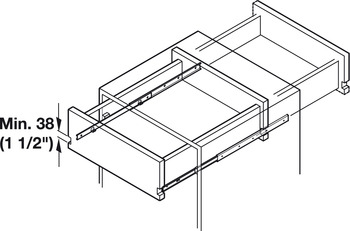

  Front panels must be notched for two-way travel drawers with continuous front panels.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 2002 Quick Reference Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.109



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.72-8.73.pdf

  Hafele 422.15.556, 422-15-556, 42215556, 422.15


  Specifications/Hafele Catalog - Page# FC8.56: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Varianta Euro Screw, with Special Countersunk Head
