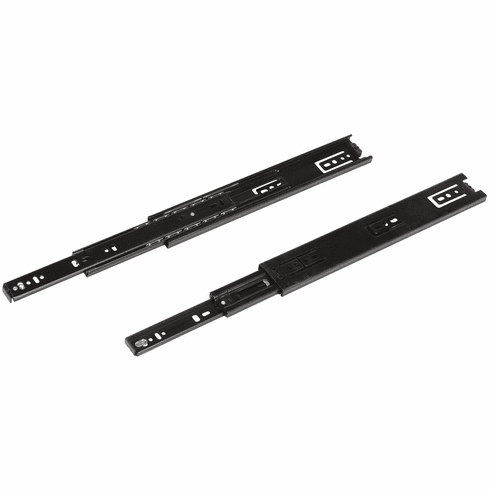

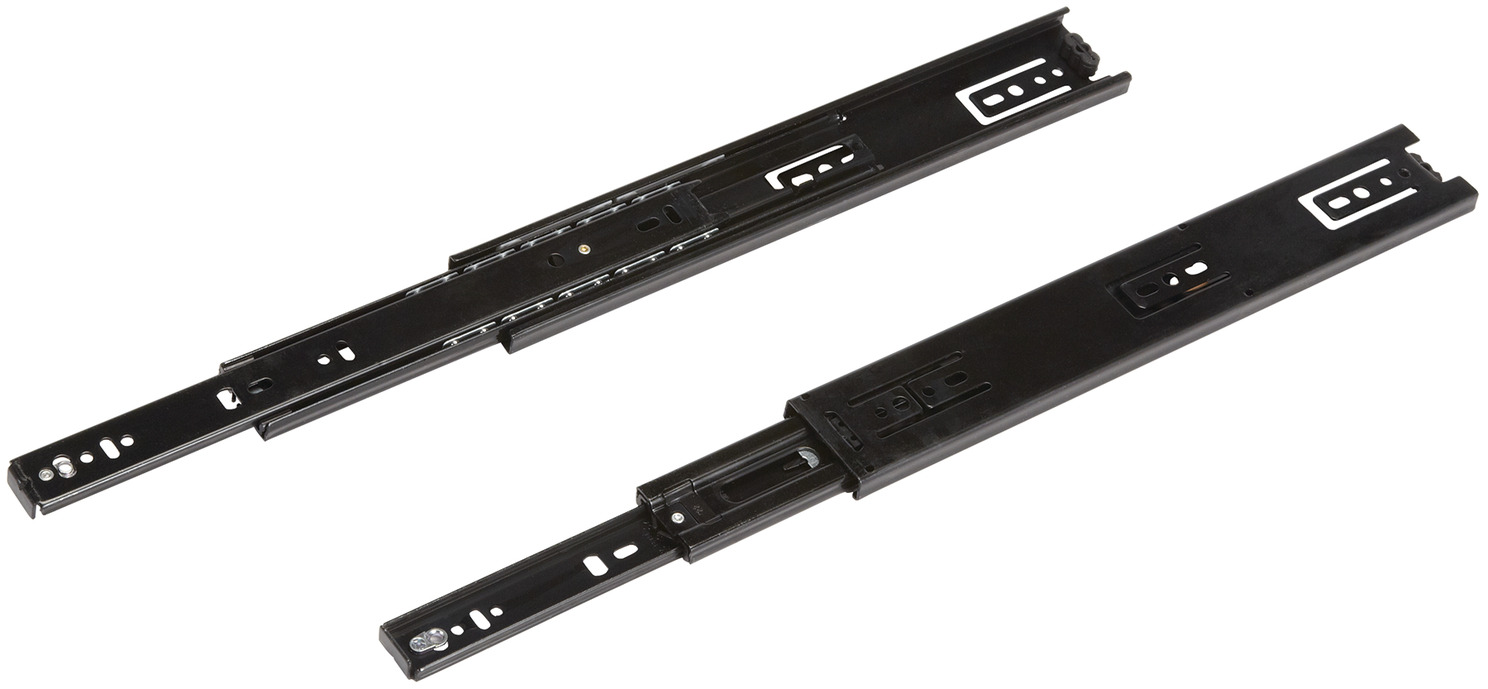

Hafele 422.16.419 Accuride 3834 Telescopic Side Mounted Cam Adjust Slide, 1" Overtravel, 90 lbs Weight Capacity Black, 16"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.16.419

  Product Title: Accuride 3834 Telescopic Side Mounted Cam Adjust Slide, 1" Overtravel, 90 lbs Weight Capacity, Black, 16"

  Category: Accuride 3834 Telescopic Side Mounted Cam Adjust Slide, 1" Overtravel, 90 lbs Weight Capacity,

  Item Details …

  - Load bearing capacity : 41.00 kg

  - Load bearing capacity : Per pair: 90 lbs

  - Mounting : Side mounted

  - Version : TelescopicFeatures low profile for shallow drawersLever disconnectBHMA certified to Grade 1 HD-100

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406 mm (16") wide

  - Holding function : Hold-in

  - Removing the running track : With release lever

  - Material : Steel

  - Bearing : Ball bearing

  - Installation : Side mounted

  - Load bearing capacity per pair : 41.00 kg

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 3834 Quick Reference Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.88



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.51-8.51.pdf

  Hafele 422.16.419, 422-16-419, 42216419, 422.16


  Specifications/Hafele Catalog - Page# FC8.37: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Optional Face Frame Bracket, for Accuride 3832 and 3834 Slides
