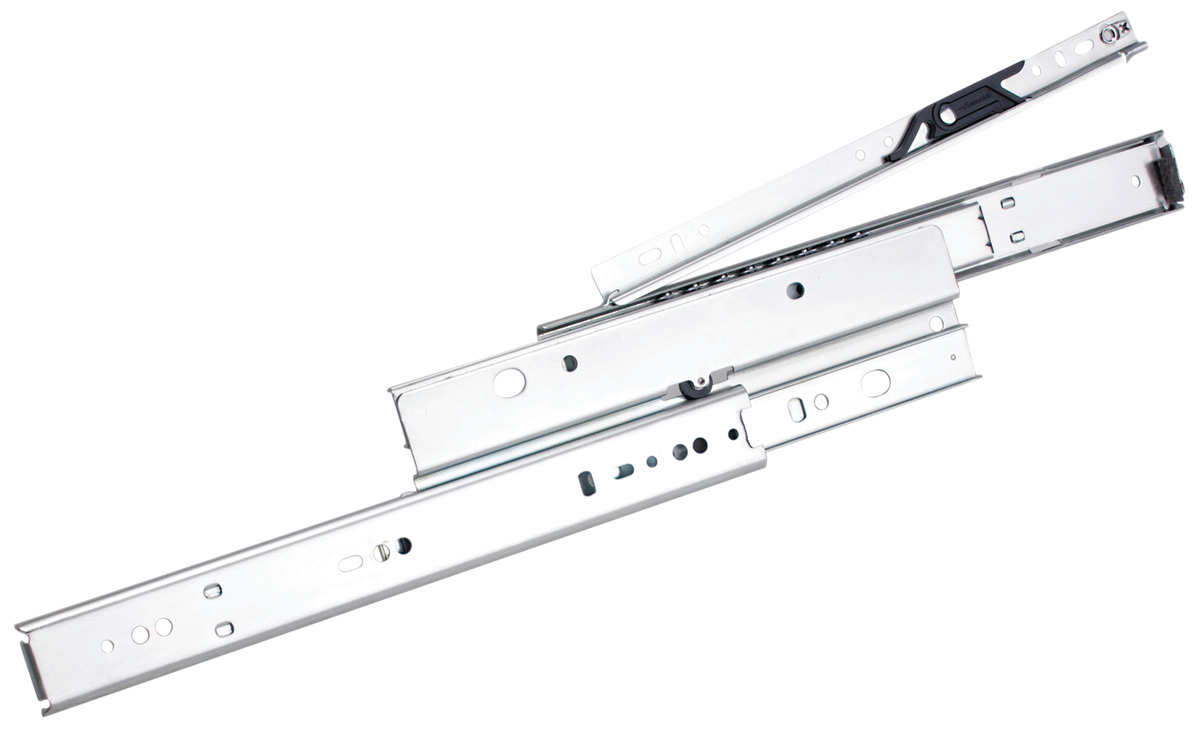

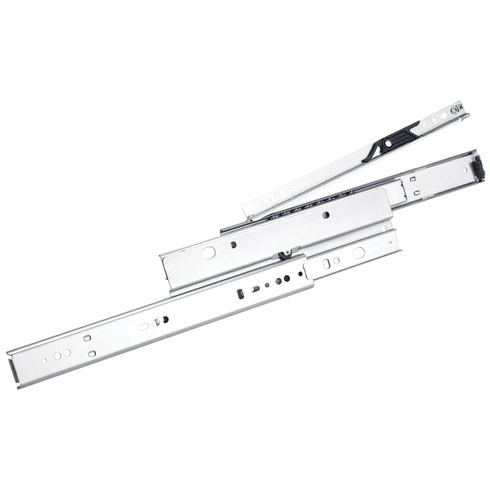

Hafele 422.17.660 Accuride 4034 Progressive, Heavy Duty Side Mounted Slide, 1 1/2" Overtravel, 150 lbs Weight Capacity X pack, zinc, 26"

Product Information

• Description

  Hafele 422.17.660 Accuride 4034 Progressive, Heavy Duty Side Mounted Slide, 1 1/2" Overtravel, 150 lbs Weight Capacity
  X pack, zinc, 26"

  Note: This product can only be purchased in minimum quantity of 5



  Model series : 4034

  Features : Progressive

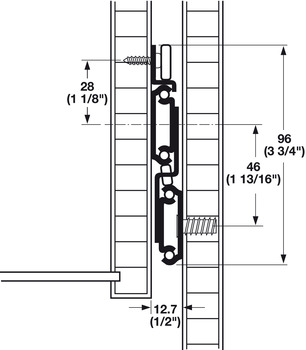

  Mounting : Side mounted

  Load bearing capacity : Per pair: (150 lbs) 68 kg

  Drawer width : Max: (24") 610 mm

  Type of pull out : Full extension with 1 1/2" overtravel and hold-in detent

  Application : For file drawer applications in desks, credenzas, lateral files, store fixtures and institutional furniture

  Material : Steel

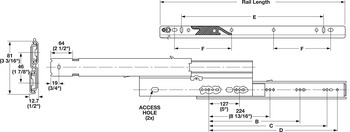

  B : 352 mm

  C : 544 mm





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.64-8.64.pdf

  Hafele 422.17.660, 422-17-660, 42217660, 422.17


  Specifications/Hafele Catalog - Page# FC8.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs
