Hafele 422.22.050 Ball Bearing Slide, Accuride SS5321, Full Extension, Non-Disconnect, with Overtravel, 350 lbs rating installation length: 500 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.22.050

  Product Title: Ball Bearing Slide, Accuride SS5321, Full Extension, Non-Disconnect, with Overtravel, 350 lbs rating, Grade 304 stainless steel, with hold-in feature, installation length: 500 mm

  Category: Ball Bearing Slide, Accuride SS5321, Full Extension, Non-Disconnect, with Overtravel, 350 lbs rating, Grade 304 stainless steel, with hold-in feature

  Item Details …

  - Version : With hold-in device for holding in closed position

  - Type of pull out : Full extension

  - Area of application : For potentially corrosive environments

  - Holding function : Hold-in

  - Removing the running track : without release lever

  - Material : Stainless Steel

  - Width : 224.00 mm

  - Installation : At drawer side


  Additional Information …

  Rail elements and ball cages are made from stainless steel 1.4301 and are anti-magnetic. Magnetizability can occur slightly with certain applications. Balls are made from stainless steel 1.4034 for hardness reasons and are magnetic.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for 5321

  Installation instructions



• Specifications

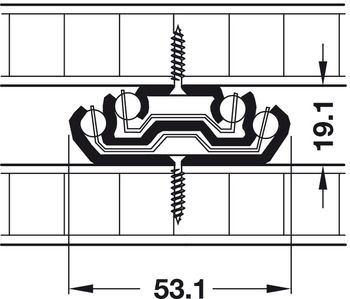

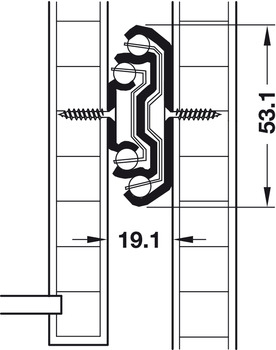

  Hafele 422.22.050 Accuride Ss5321-20P Sta St Full Ext Over Travel 350 Lb (50X1.91X5.31 Cm)


  Product Specifications:
  Contact us for more information.

• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
