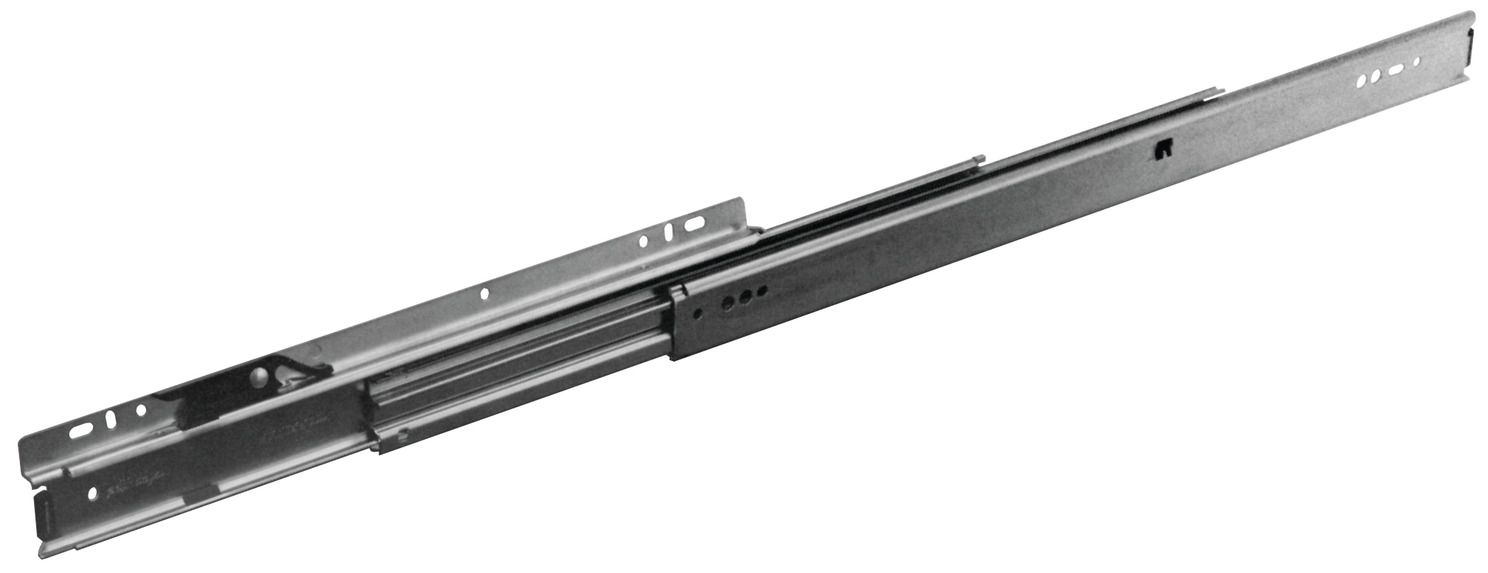

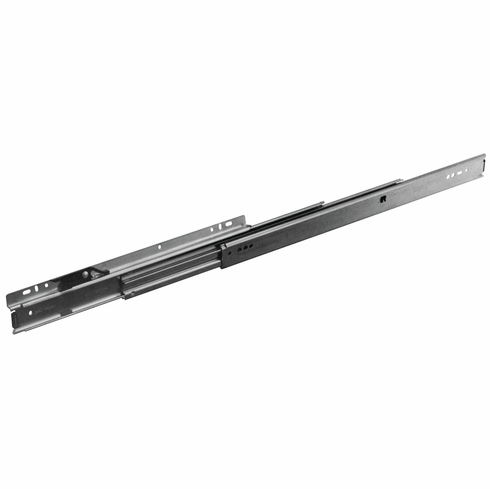

Hafele 422.29.945 Accuride 7432 Progressive Side Mounted Slide, Full Extension, 100 lbs Weight Capacity Shop pack, zinc-plated, 18"

Product Information

• Description

  Hafele 422.29.945 Accuride 7432 Progressive Side Mounted Slide, Full Extension, 100 lbs Weight Capacity
  Shop pack, zinc-plated, 18"



  Model series : 7432

  Type of pull out : Full extension with hold-in detent

  Mounting : Side mounted
  Rail mounted for easy drawer installation and removal

  Features : Progressive
  Low profile - 60 mm (2 3/8")

  Load bearing capacity : Per pair: (100 lbs) 45 kg

  Application : Drawers up to 24" wide

  Drawer width : max. (24") 609.6 mm

  Material : Steel





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.29.945, 422-29-945, 42229945, 422.29


  Specifications/Hafele Catalog - Page# FC8.47: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader
