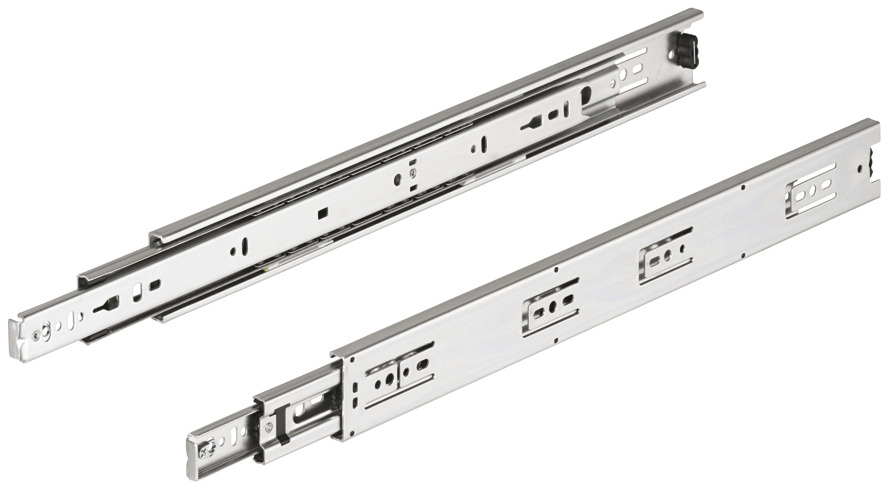

Hafele 422.91.936 Ball Bearing Runners, Full Extension, 100 lbs Weight Capacity Zinc, 14"

Product Information

• Description

  Manufacturer: Hafele
  Item: 422.91.936

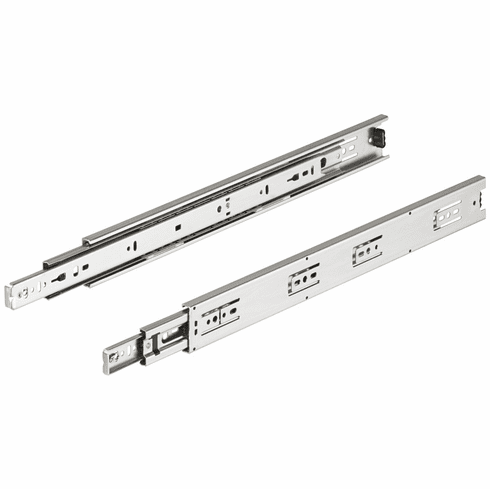

  Product Title: Accuride 3832DO Telescopic Detent Out Ball Bearing Drawer Slide, Full Extension, 100 lbs Weight Capacity, Load bearing capacity up to 43 kg, steel, side mounted, Zinc, 14"

  Category: Accuride 3832DO Telescopic Detent Out Ball Bearing Drawer Slide, Full Extension, 100 lbs Weight Capacity,

  Item Details …

  - BMHA Certified Grade 1 HD-100

  - Hold-in detent

  - Features low profile for shallow drawers

  - Easy lever disconnect

  - For keyboards or any application requiring a positive hold-out

  - Special detent out to hold drawers in an open position

  - For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening

  - Load bearing capacity : 100 lbs/pair

  - Mounting : Side mounted

  - Version : With hold-in device in closed position and hold-out device in extended position

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406mm (16") wide

  - Removing the running track : With release lever

  - Material : Steel

  - Width : 292.00 mm

  - Installation : For optimal performance make drawers 1 1/16" (27 mm) lessthan cabinet opening

  - Order reference

  - Available also in black, zinc plated or white coated on request from 10 pairs.


  Additional Information …

  Mounting bracket is not suitable for Accuride 3832 EC and 3832 TR.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Mounting Instructions

  Installation instructions for Accuride 2132

  Accuride 3832DO Quick Reference Guide

  Installation instructions



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page:

  Hafele 422.91.936, 422-91-936, 42291936, 422.91


  Specifications/Hafele Catalog - Page# FC8.42: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Euro screw, Häfele, Varianta, countersunk head, PZ, steel, fully threaded, for Diameter: 5 mm drill holes in wood
