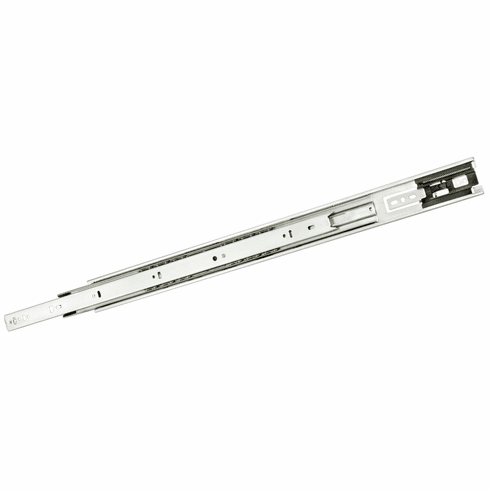

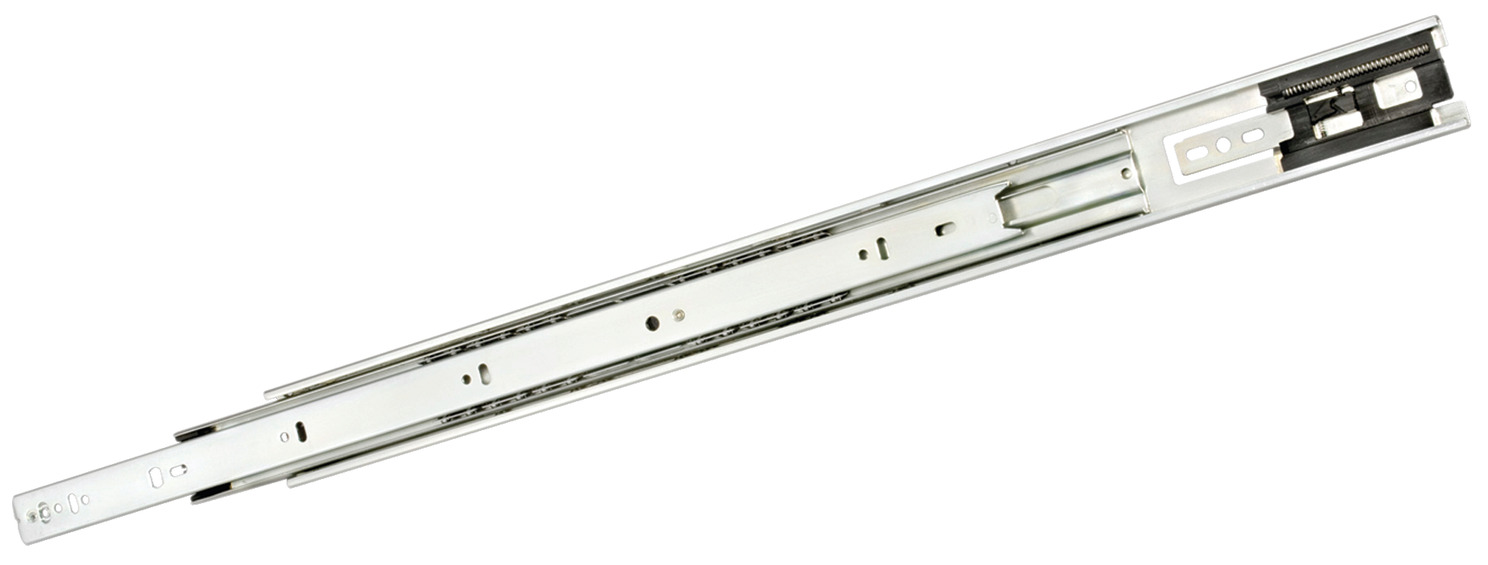

Hafele 422.97.860 Accuride 3832HDTR Heavy Duty Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity 24"
Product Information
Description
Manufacturer: Hafele
Item: 422.97.860
Product Title: Accuride 3832HDTR Heavy Duty Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity, 24"
Category: Accuride 3832HDTR Heavy Duty Touch Release, Telescopic, Side Mounted Cam Adjust Slide, Full Extension, 100 lbs Weight Capacity,
Item Details …
- Push on the drawer front to open or close the drawer (touch activated)

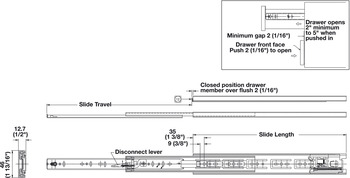

- Opening mechanism activated by 1/16" (2mm) travel inward
- Propels drawers open approximately 2 – 5" (51 - 127mm) from the closed position
- Lock-in feature helps keep drawers closed
- Holding capacity is 1.5X stronger than standard 3832TR
- Elimination of drawer pulls/handles provides an aesthetic, streamlined look
- Load bearing capacity : Per pair: 100 lbs
- Mounting : Side mounted
- Version : TelescopicLever disconnect
- Color/finish : Zinc-electroplated
- Type of pull out : Full extension
- Area of application : For drawers up to 609.6mm (24") wide
- Removing the running track : With release lever
- Material : Steel
- Bearing : Ball bearing
- Width : 492.00 mm
- Installation : For optimal performance make drawers 1 1/16" (27 mm) less than cabinet opening
- Load bearing capacity per pair : 45.00 kgData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page:Hafele 422.97.860, 422-97-860, 42297860, 422.97 Specifications/Hafele Catalog - Page# FC8.44:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Drawer Slides Catalog
Return to: All Hafele CatalogsDownload
