Hafele 423.37.730 Epoxy Coated Bottom Mounted Slide Set, 3/4 Extension, Self-Closing, 100 lbs Weight Capacity Complete Set, white; 12"

Product Information

• Description

  Manufacturer: Hafele
  Item: 423.37.730

  Product Title: Epoxy Coated Bottom Mounted Slide Set, 3/4 Extension, Self-Closing, 100 lbs Weight Capacity, Complete Set, white; 12"

  Category: Epoxy Coated Bottom Mounted Slide Set, 3/4 Extension, Self-Closing, 100 lbs Weight Capacity, Complete Set

  Item Details …

  - Version : 4 friction bearing-mounted rollers with washer bearings

  - Type of pull out : Single extension

  - Features : 4 friction bearing-mounted rollers with washer bearings

  - Comfort functions opening/closing : Self close

  - Load bearing capacity : 25.00 kg

  - Load bearing capacity : Dynamic weight capacity: max. 100 lbs/pair; Static weight capacity: max. 125 lbs/pair

  - Material : Powder coated steel

  - Color/finish : white RAL 9010

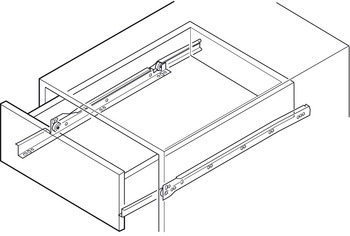

  - Mounting : Bottom mounted

  - Installation : Bottom mounted

  - Supplied with:

  - Packed in complete sets.

• Data Sheet

  Detailed Data Sheet

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.85-8.85.pdf

  Hafele 423.37.730, 423-37-730, 42337730, 423.37


  Specifications/Hafele Catalog - Page# FC8.68: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Drawer Front Connector
