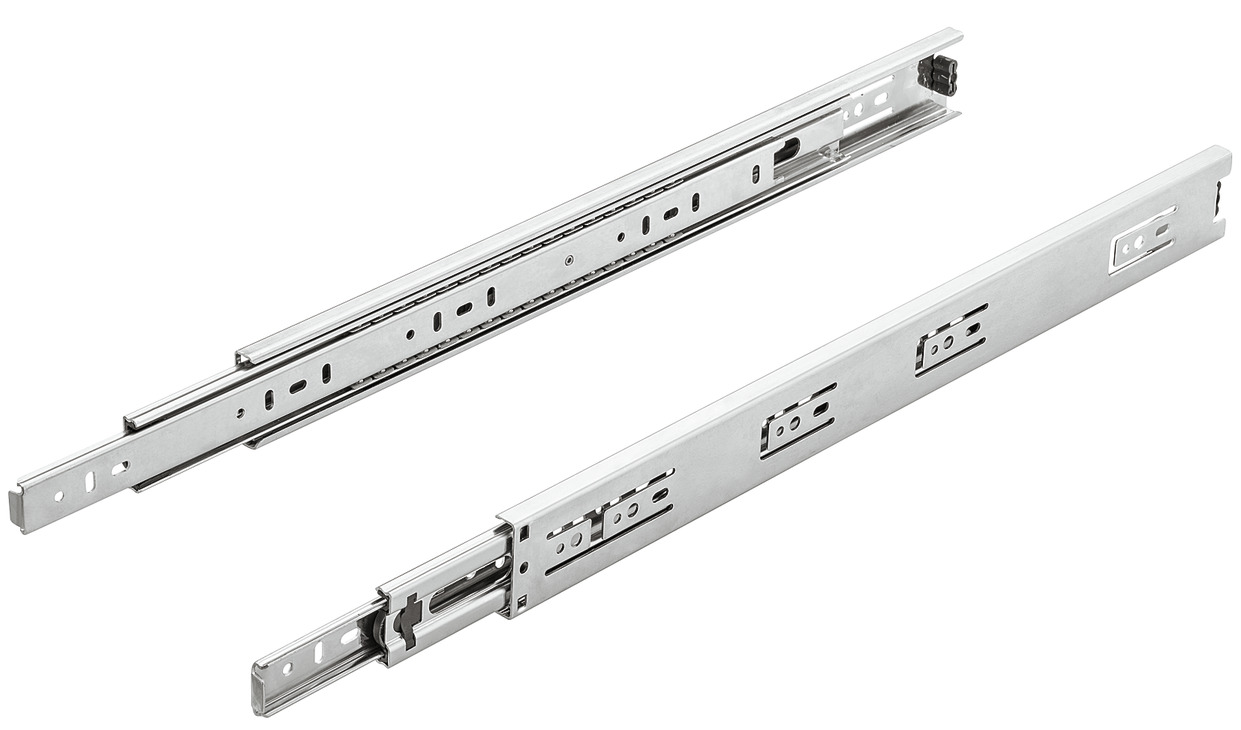

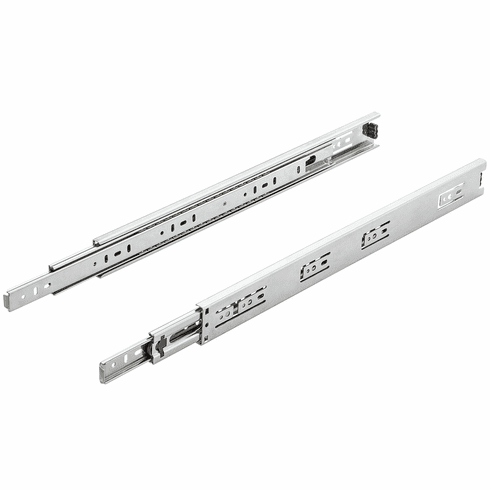

Hafele 432.21.512 Drawer Member 45mm BB Slide, 4502H, full extension, black, 100lbs, 350mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 432.21.512

  Product Title: Drawer Member, Häfele Matrix Runner BB A45, full extension, steel, side mounted, With hold-in device for holding in closed position, black; 350 mm length

  Category: Ball bearing runners, Häfele Matrix Runner BB A45, full extension, steel, side mounted, With hold-in device for holding in closed position

  Item Details …

  - Hold-in detent secures drawer in fully closed position; prevents drawer from creeping open

  - Tested in accordance with ANSI/BHMA and WI

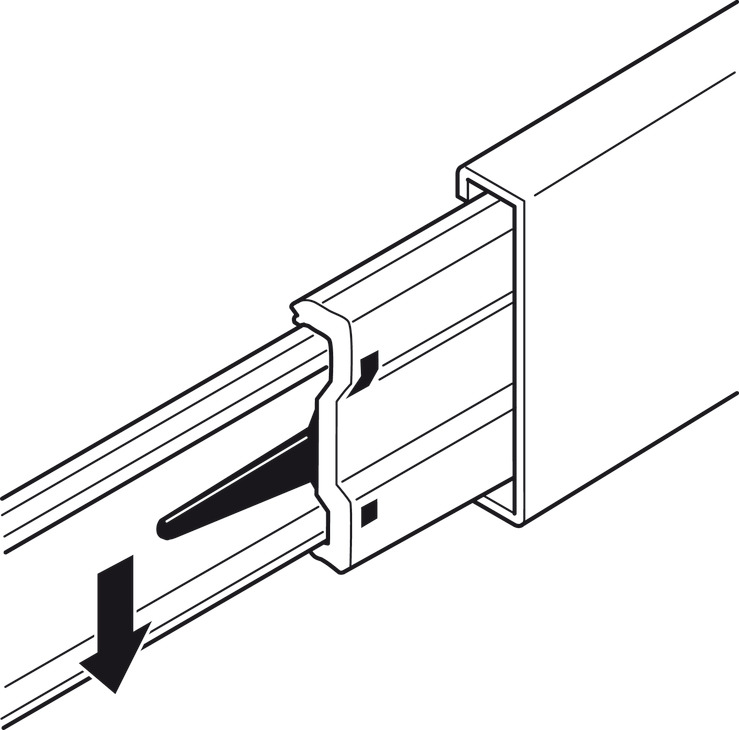

  - Lever disconnect

  - Load bearing capacity : 100 lbs

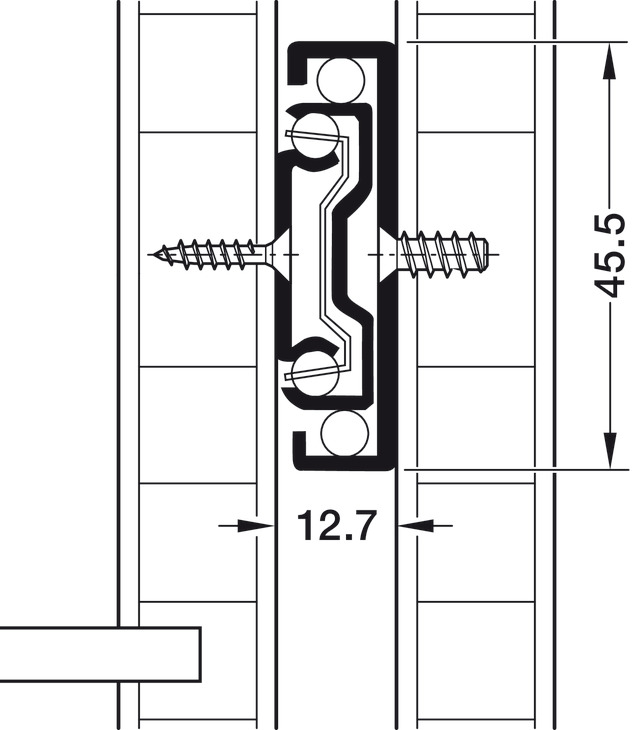

  - Mounting : Side clearance: (1/2")

  - Type of pull out : Full extension

  - Area of application : For material thickness 1.2/1.2/1.4 mm

  - Material : Steel

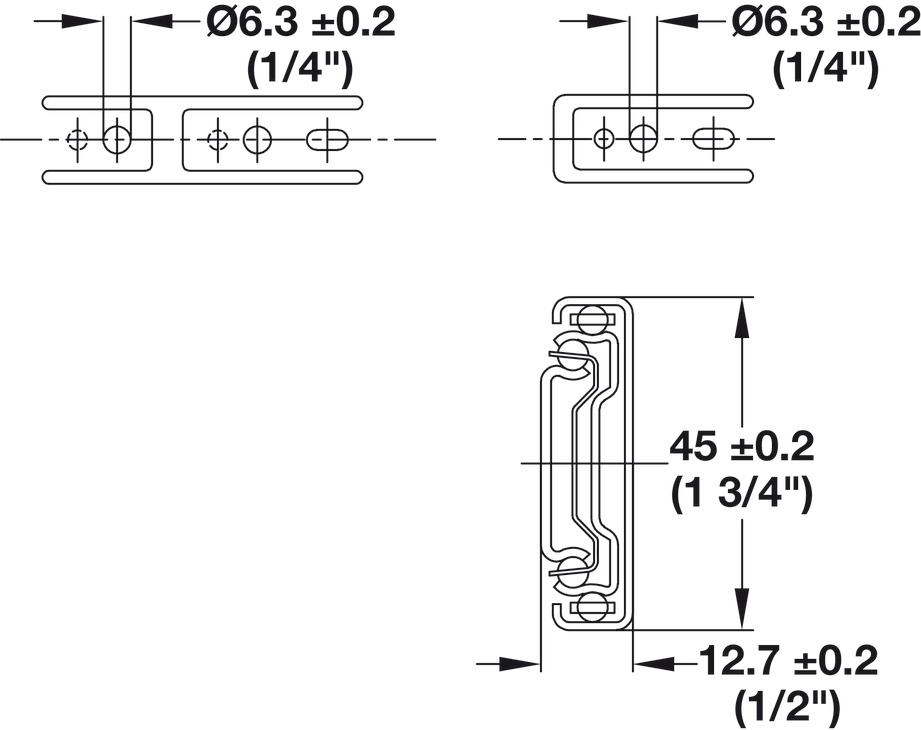

  - Width : 12.70 mm

  - Width (inch) : 1/2"

  - Height : 45.00 mm

  - Height (inch) : 1 3/4"

  - Dim. (W x H) : 12.7 x 45 mm

  - Material thickness : 1.2/1.2/1.4 mm

  - Installation : Side, for screw fixing

  - Order reference

  - Separated members are sold in pieces

  - Supplied with:

  - Drawer Members have 100 pc/box

  - Cabinet Members have 50 pc/box

  - 5 Pairs/box (each polybagged)


  Additional Information …

  Pallet quantities available upon request.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  432.21.XXX Drilling Pattern - 1

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.120



• Required Products & Optional Accessories

  Optional Accessories:



  • Rear Socket Adjustable Bracket, R/L
  • Face Frame Rear Bracket, for Zbox
