Hafele 432.21.972 Drawer Slide 45mm BB, 4502, full extension, zinc plated, 100 lbs, 350mm
, 43221972, 432-21-972 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 432.21.972
Product Title: Ball Bearing Slide, Häfele Matrix Runner BB A45, full extension, load bearing capacity up to 45 kg, steel, side mounted, With hold-in device for holding in closed position, Paired, Zinc; 350 mm length
Category: Ball bearing runners, Hfele Matrix Runner BB A45, full extension, steel, side mounted, With hold-in device for holding in closed position
Item Details
- Hold-in detent secures drawer in fully closed position; prevents drawer from creeping open
- Tested in accordance with ANSI/BHMA and WI
- Lever disconnect
- Load bearing capacity : 100 lbs
- Mounting : Side clearance: (1/2")
- Type of pull out : Full extension
- Area of application : For material thickness 1.2/1.2/1.4 mm

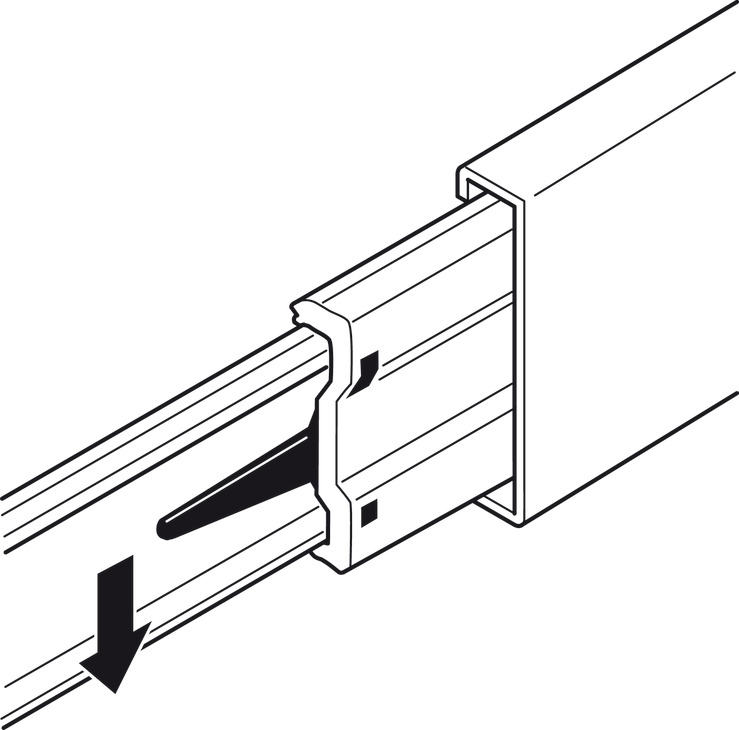

- Removing the running track : With release lever
- Material : Steel
- Width : 12.70 mm
- Width (inch) : 1/2"
- Height : 45.00 mm
- Height (inch) : 1 3/4"

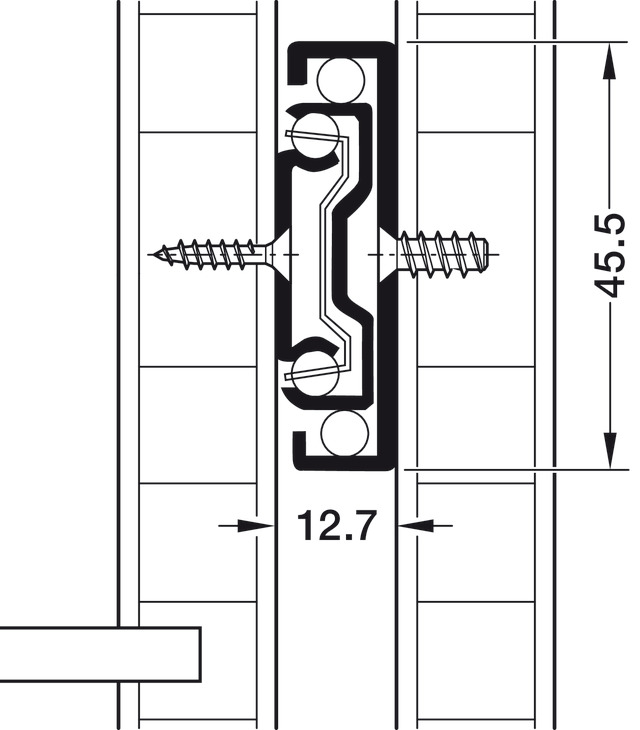

- Dim. (W x H) : 12.7 x 45 mm
- Material thickness : 1.2/1.2/1.4 mm
- Installation : Side, for screw fixing
- Order reference
- Separated members are sold in pieces
- Supplied with:
- Drawer Members have 100 pc/box
- Cabinet Members have 50 pc/box
- 5 Pairs/box (each polybagged)
Additional Information
Pallet quantities available upon request.Data Sheet
Product Resources
Required Products & Optional Accessories
Optional Accessories:- Rear Socket Adjustable Bracket, R/L
- Face Frame Rear Bracket, for Zbox
