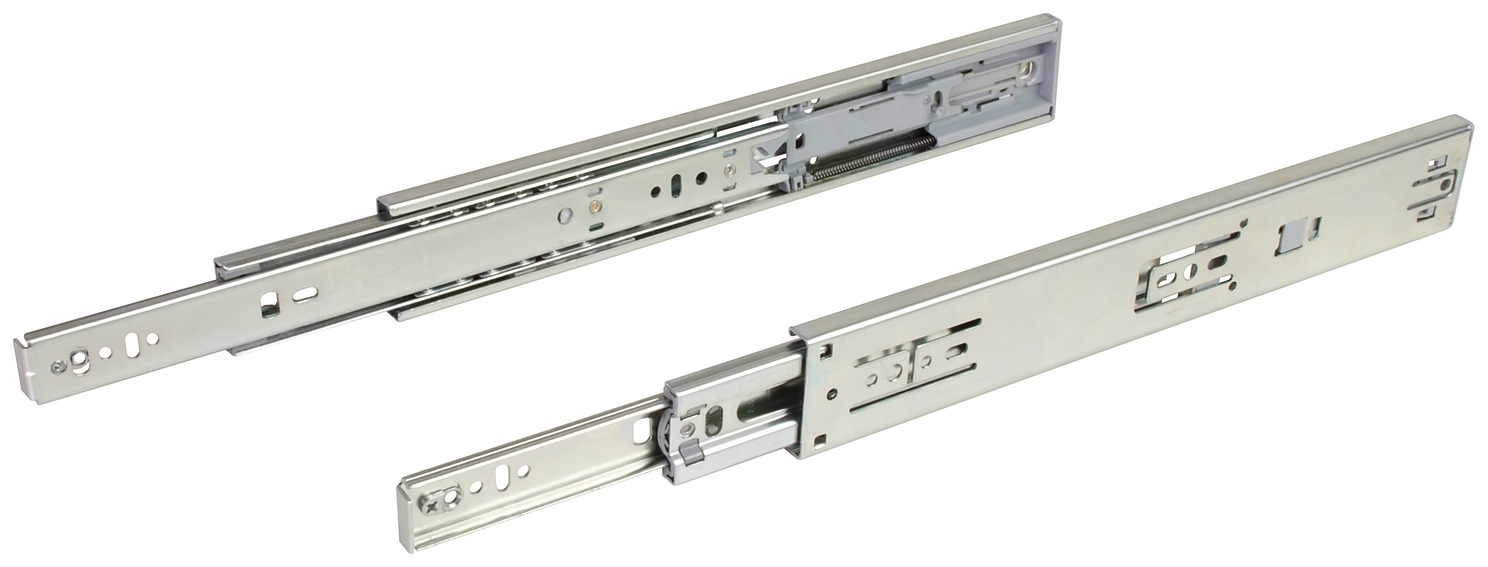

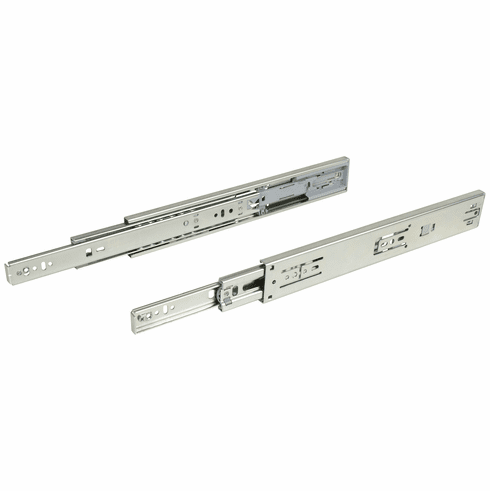

Hafele 432.23.818 Accuride 3832EC Telescopic Easy Close Ball Bearing Drawer Slide, Full Extension, 100 lbs Weight Capacity

Product Information

• Description

  Manufacturer: Hafele
  Item: 432.23.818

  Product Title: Accuride 3832EC Telescopic Easy Close Ball Bearing Drawer Slide, Full Extension, 100 lbs Weight Capacity, With self-closing and soft-closing mechanisms, Bulk pack, 700 mm (28") installation length

  Category: Accuride 3832EC Telescopic Easy Close Ball Bearing Drawer Slide, Full Extension, 100 lbs Weight Capacity, With self-closing and soft-closing mechanisms

  Item Details …

  - New design has improved performance and stability

  - Easy close brings drawer to a gradual soft close

  - Lever disconnect for easy removal and re-insertion

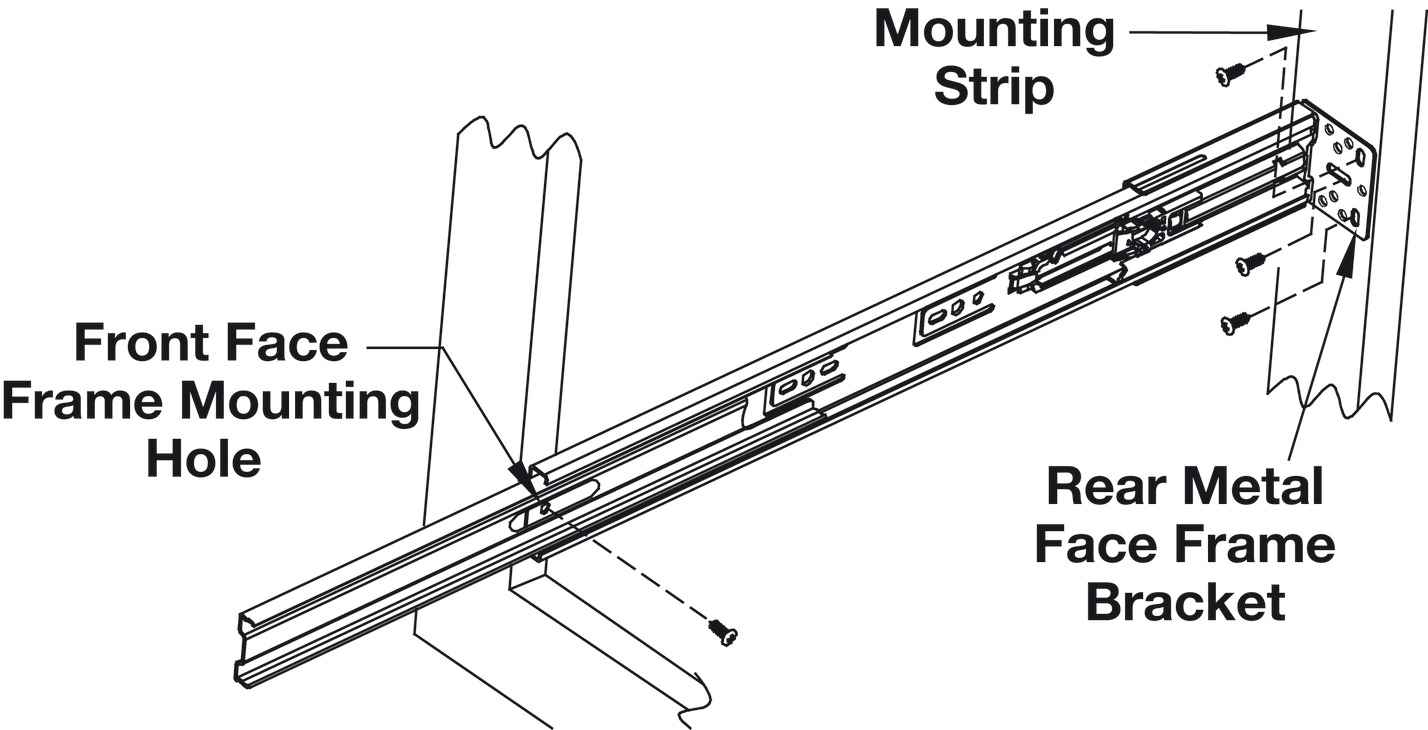

  - Front face frame mounting hole

  - Load bearing capacity : 100 lbs/pair

  - Area of application : For drawers: max. 406 mm (16") wideNot intended for lateral file drawer applications

  - Material : Steel, electro-platedBearings: Steel

  - Load bearing capacity per pair : 45.00 kg

  - Supplied with:

  - Shop Pack: 1 pair, Screws, Instructions;

  - Bulk Pack: 10 pairs


  Additional Information …

  Travel on the 350 mm (14") is 307 mm (12 1/16").

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.92



• Required Products & Optional Accessories

  Optional Accessories:



  • Optional Face Frame Brackets, for Accuride 3832EC Side Mounted Slide
