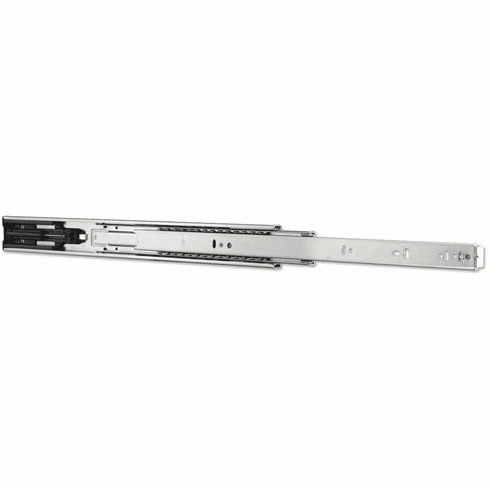

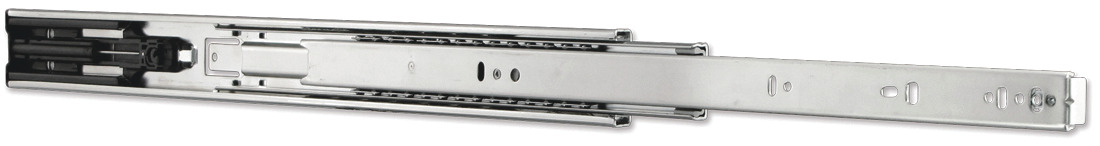

Hafele 432.23.936 Ball Bearing Runners, Full Extension, 100 lbs Weight Capacity Bulk pack, length: 350 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 432.23.936

  Product Title: Accuride 3832EC Telescopic Easy Close Ball Bearing Drawer Slide, Full Extension, 100 lbs Weight Capacity, With self closing and soft closing mechanisms, Bulk pack, length: 350 mm

  Category: Accuride 3832EC Telescopic Easy Close Ball Bearing Drawer Slide, Full Extension, 100 lbs Weight Capacity, With self closing and soft closing mechanisms

  Item Details …

  - The integrated soft closing mechanism increases the value of your furniture by gently closing the doors which prevents damage to the material and therefore prolongs the life span of the furniture

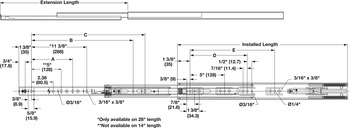

  - Travel on the 14" (350 mm) is 12 1/16" (307 mm)

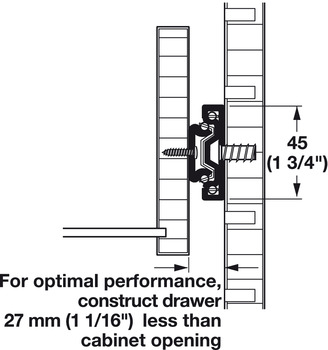

  - For the slide to operate properly, the drawer box must be 1-1/16" smaller than the cabinet opening.

  - Not intended for lateral file drawer applications

  - ROHS compliant

  - Brings drawers to a gentle close

  - Lever disconnect for easy removal and re-insertion

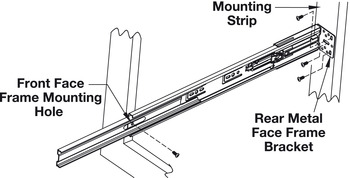

  - Front face frame mounting hole

  - Load bearing capacity : 100 lbs/pair

  - Version : Can be removed using release lever

  - Color/finish : Zinc plated, Galvanized

  - Type of pull out : Full extension

  - Area of application : For drawers up to 406 mm (16") wide

  - Removing the running track : With release lever

  - Material : Steel

  - Width : 206.00 mm

  - Installation : At drawer side

  - Order reference

  - Also available in black from an order quantity of 10 pairs on request.

  - Supplied with:

  - Shop pack: 1 pair slides, screws and instructions

  - Bulk pack: 10 pair slides


  Additional Information …

  Mounting bracket is not suitable for use with Accuride 3832 EC and 3832 TR.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Accuride 3832EC Mounting Instructions

  Accuride 3832EC Installation Tips

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.92



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.52-8.53.pdf

  Hafele 432.23.936, 432-23-936, 43223936, 432.23


  Specifications/Hafele Catalog - Page# FC8.38: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Drawer Slides Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Required Products & Optional Accessories

  Optional Accessories:



  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
  • Optional Face Frame Brackets, for Accuride 3832EC Side Mounted Slide
