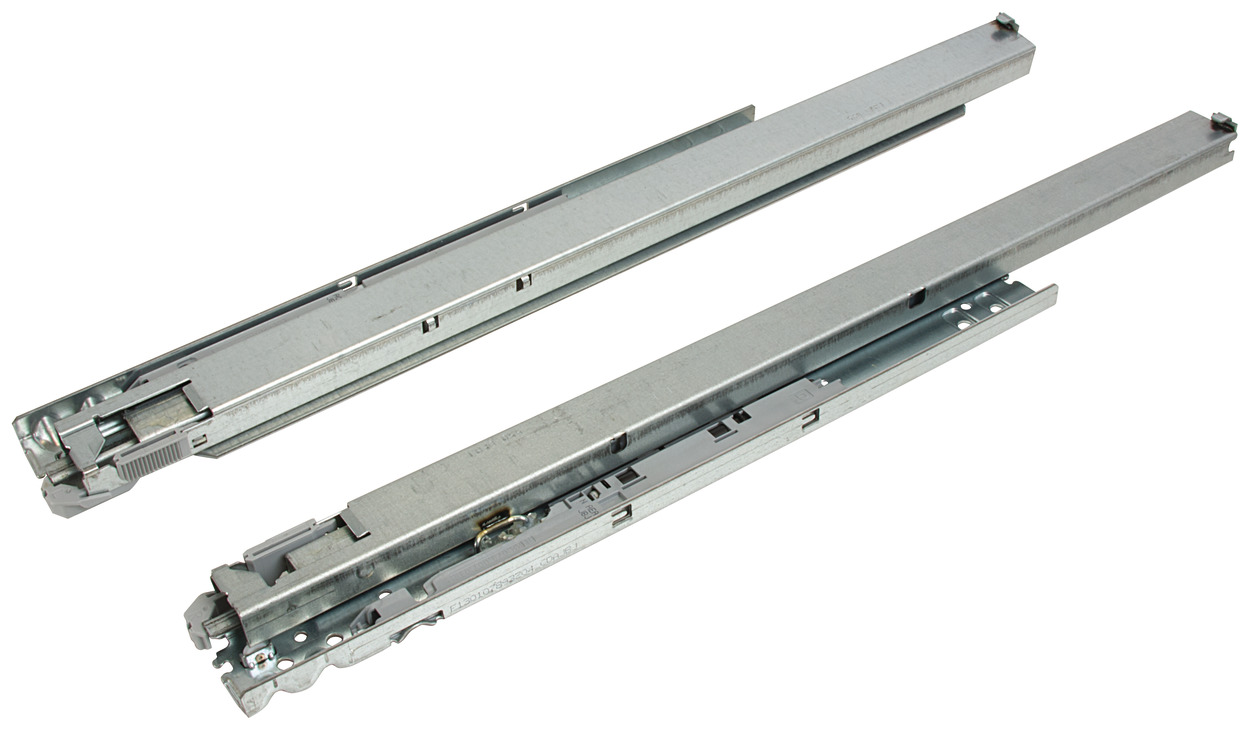

Hafele 433.19.624 Grass Dynapro BPM, steel, full extension, soft close, 450mm, 18 inch

Product Information

• Description

  Manufacturer: Hafele
  Item: 433.19.624

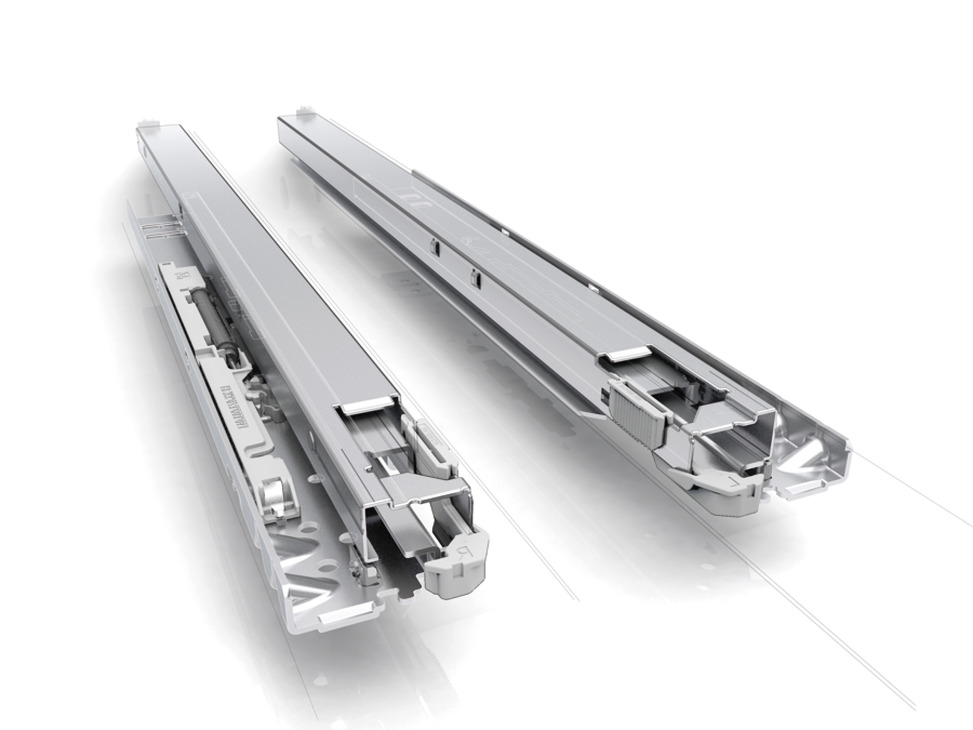

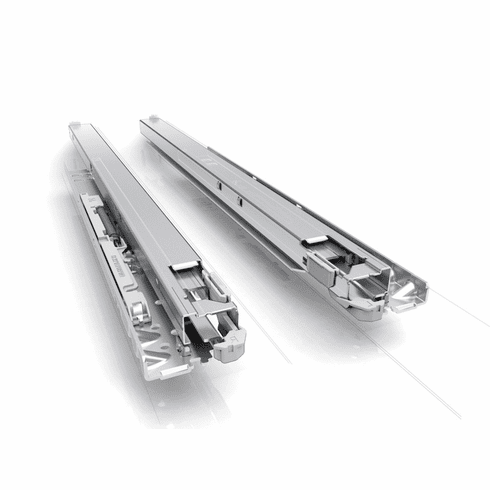

  Product Title: Concealed Drawer Slide, for Base Panel Mounting, Full Extension, Dynapro 40 kg, With integrated liquid Soft-close , 18" length

  Category: Concealed Drawer Slide, for Base Panel Mounting, Full Extension, Dynapro 40 kg, With integrated liquid Soft-close®

  Item Details …

  - Type of pull out : Full extension

  - Comfort functions opening/closing : Soft close

  - Load bearing capacity : 40.00 kg

  - Load bearing capacity : 88 lbs

  - Material : Steel

  - Color/finish : Zinc plated

  - Installation : 32 mm drilling pattern

• Data Sheet

  Detailed Data Sheet

• Product Resources

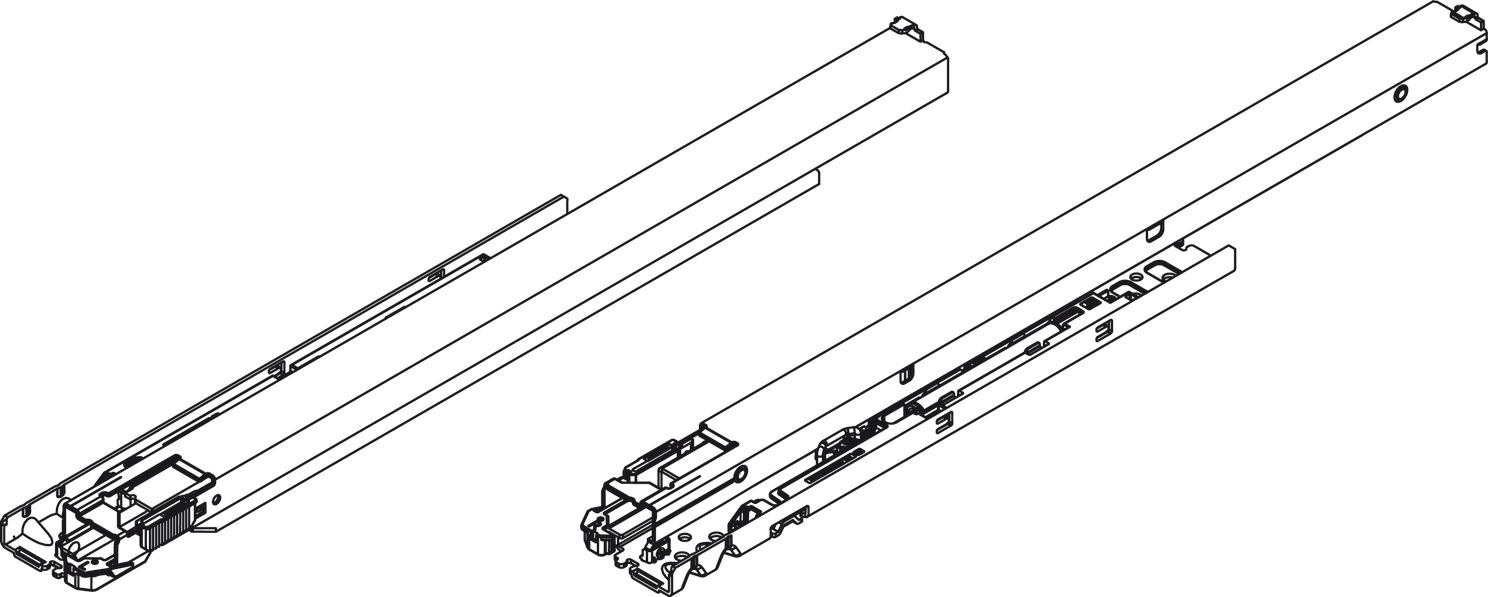

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.65A



• Required Products & Optional Accessories

  Optional Accessories:



  • Chipboard screw, Hospa, Pan Head, PZ, Fully Threaded, Galvanized
  • Euro screw, Häfele, Varianta, countersunk head, Steel
