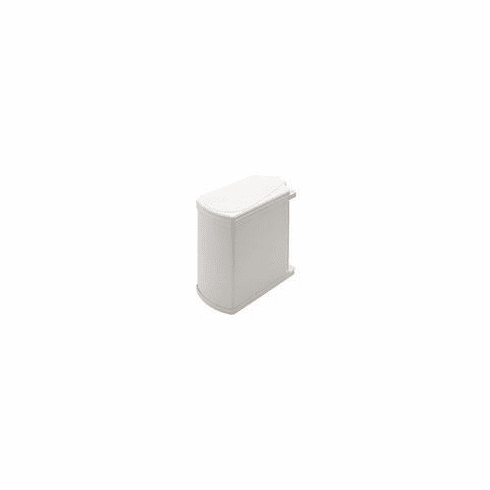

Hafele 502.62.710 Side Panel/Door Mounted Waste Bin, Side Panel/Door Mounted White/light gray

Product Information

• Description

  Hafele 502.62.710 Side Panel/Door Mounted Waste Bin, Side Panel/Door Mounted
  White/light gray



  Mounting : Left or right mounting

  Application : For swing-out doors

  Clearance : Frame: min. (15 3/8") 389 mm

  Capacity : (4.75 gal/19 qt.) 18 liters

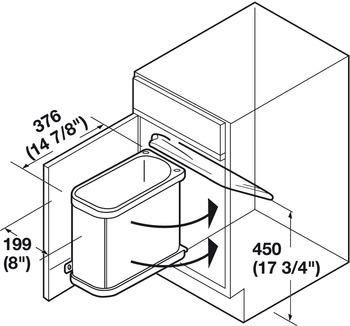

  Installation width : (8") 199 mm

  Installation depth : (14 7/8") 376 mm

  Installation height : (17 3/4") 450 mm

  Material : Plastic





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.36-3.37.pdf
