Hafele 503.00.520 Waste Bin Pull-Out, Salice, Single 498 mm x 305 mm x 495 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 503.00.520

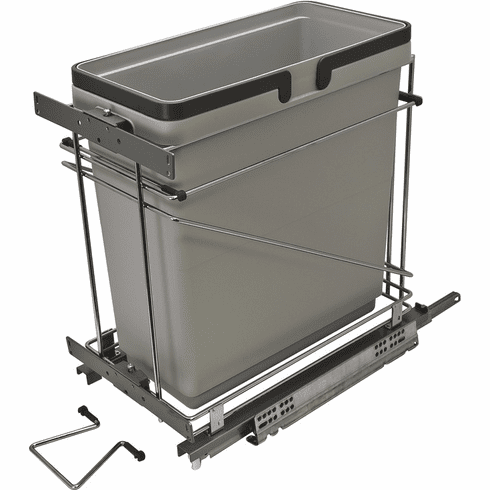

  Product Title: Waste Bin Pull-Out, Salice, Single, for 12" opening, model QPAM12135C

  Category: Waste Bin Pull-Out, Salice, Single, for 12" opening, model QPAM12135C

  Item Details …

  - Waste bins feature integrated handles for easy removal

  - Bottom or side mount

  - Full extension

  - Easy installation with 4 screws

  - For 12" opening

  - Model : QPAM12135C

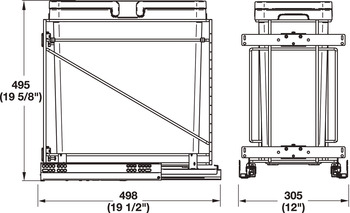

  - For cabinet width : ?305 mm

  - For internal cabinet height : 495.00 mm

  - For internal cabinet depth : ?498 mm

  - Capacity : 33.00 l

  - Capacity : 35 qt.

  - Bin : 33 l

  - Suitable for : 12" opening (width)

  - Number of bins : 1.00

  - Width (inch) : 12"

  - Depth (inch) : 19 5/8"

  - Height (inch) : 19 1/2"

  - Material/finish : Steel / Plastic

  - Area of application : Can be used with hinged door or with door attached

  - Version : Soft Close

  - Load bearing capacity : 34.00 kg

  - Load bearing capacity : 75 lbs

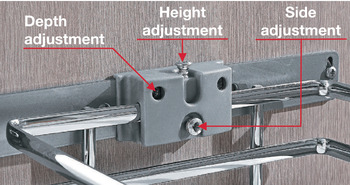

  - Further adjustment facility : Door-mount bracket patented system features 3 way adjustability for alignment of the cabinet door: height: (+/-2 mm), side (+/-3 mm), depth (+/-4 mm)Easy installation with 2 screwsSuitable for standard and five piece doorsAdjustment via #2 pozi driver

  - Supplied with:

  - Bin

  - Frame

  - Mounting screws

  - Mounting instructions
