Hafele 505.58.103 Pull-Out Table System, Rapid Maple

Product Information

• Description

  Manufacturer: Hafele
  Item: 505.58.103

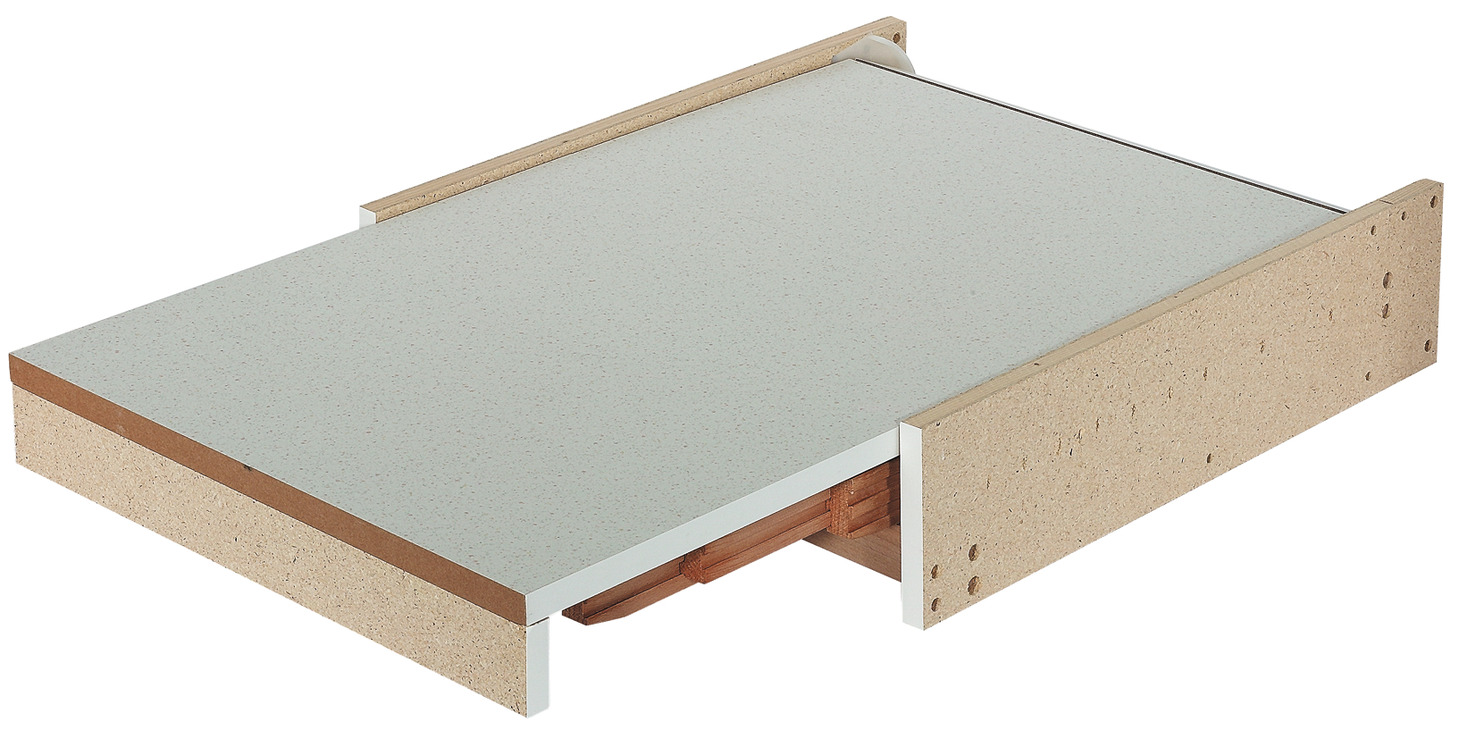

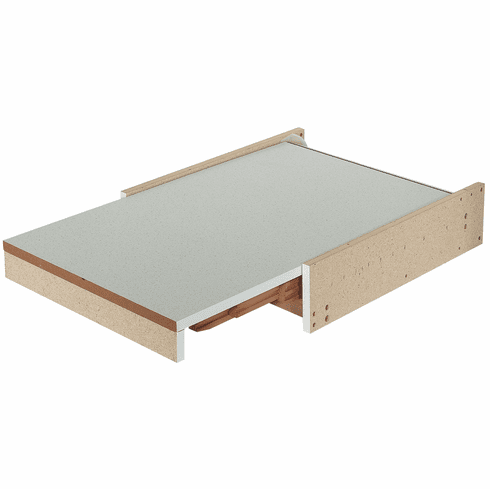

  Product Title: Pull-Out Table System, Rapid, For cabinet width 600 mm, Maple

  Category: Pull-Out Table System, Rapid, For cabinet width 600 mm

  Item Details …

  - The system can be subsequently installed in place of a drawer or between two cabinets

  - Extend kitchen prep areas when you need them and quickly stow away when you don’t

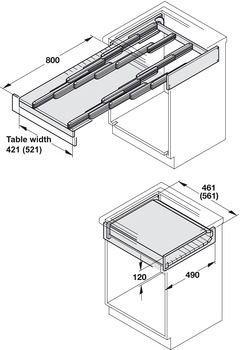

  - Extension length : 800.00 mm

  - Extension length : 31 1/2"

  - For internal cabinet height : 34 - 42 "

  - For cabinet width : min. Interior width: 22 1/8"

  - Width (inch) : Table: 20 1/2"

  - For internal cabinet width : Min. 22 1/8"

  - Version : Self supportingFitting invisible when installedDrawer front panel can be screw-mounted directly onto thetable front panel

  - Material : Wood; Table top: MelamineTelescopic guides: Beech

  - Load bearing capacity : 100.00 kg

  - Load bearing capacity : For evenly distributed loads: 220 lbs

  - For cabinet width : 600 mm

  - Installation reference : Drawer front panel can be screw-mounted directly onto the table front panel

  - Supplied with:

  - Housing

  - Guides

  - Front panel

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Hailo Rapid Pull-Out Table Mounting Instructions

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.141



• Specifications

  Hafele 505.58.103, 505-58-103, 50558103, 505.58


  Specifications/Hafele Catalog - Page# FC3.88: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs
