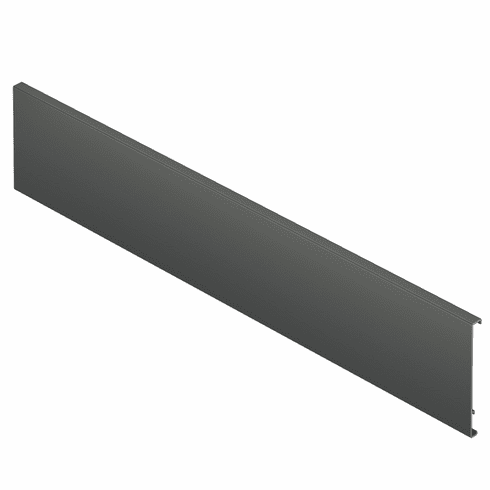

Hafele 513.70.319 Front Panel, for Internal Drawers

Product Information

• Description

  Manufacturer: Hafele
  Item: 513.70.319

  Product Title: Front Panel, for Internal Drawers, with drawer side height of 92 mm, Metallic anthracite

  Category: ,

  Item Details …

  - Suitable for : Drawer side runner system Matrix Box

  - Area of application : Panel for internal drawer

  - Material : Aluminum

  - Version : Can be shortened

  - Installation : Holders for screw fixing to the panelpanel is clipped onto the drawer sides with panel holders

  - For side panel thickness : 16 mm

  - Height : 102.00 mm

  - Installation reference : Length = internal cabinet width – 10 mm


  Additional Information …

  Holders for screw fixing to the panelpanel is clipped onto the drawer sides with panel holders
