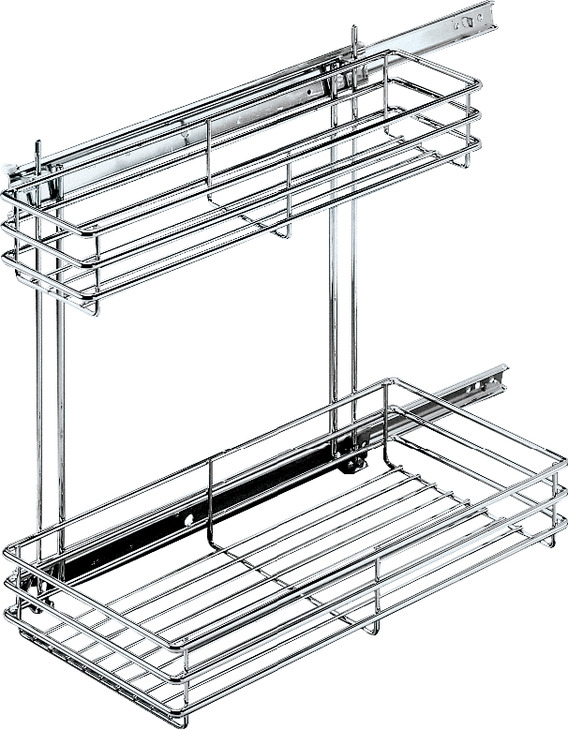

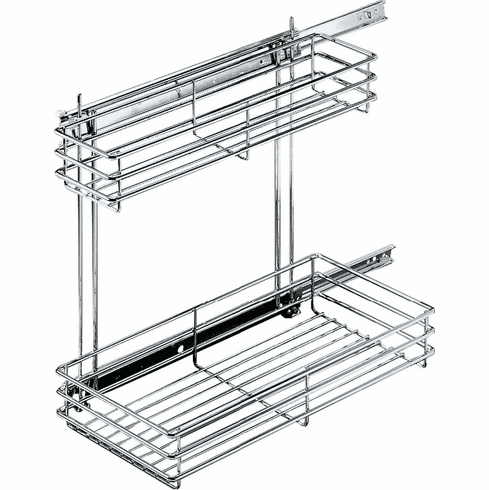

Hafele 545.48.239 Under-Sink Storage, Base Pull-Out Steel, (D x W x H) 217 x 470 x 420 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 545.48.239

  Product Title: Under-Sink Storage, Base Pull-Out, Steel, (D x W x H) 217 x 470 x 420 mm

  Category: Under-Sink Storage, Base Pull-Out, Steel, (D x W x H) 217 x 470 x 420 mm

  Item Details …

  - Version : Baskets solidly welded

  - Internal installation width : 240.00 mm

  - Installation width : 235.00 mm

  - Color/finish : Chrome plated

  - Width (inch) : 18 1/2"

  - Depth (inch) : 8 9/16"

  - Height (inch) : 16 9/16"

  - Area of application : In sink cabinets next to waste bins

  - Material : Steel

  - Extension length : 335.00 mm

  - Mounting : Two-tiered pull-out

  - Installation : For screw fixing for side panel

  - Order reference

  - Supplied with:

  - Upper runners

  - Lower runners

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

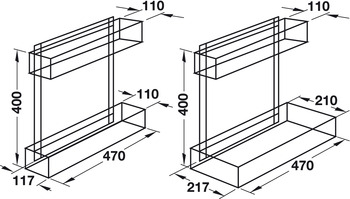

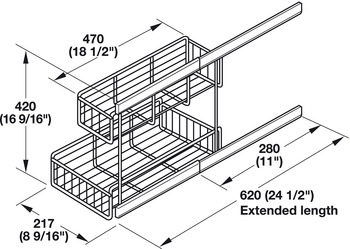

  545.48.239 Under Sink Storage Unit CAD Drawing

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.87



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.51-3.55.pdf

  Hafele 545.48.239, 545-48-239, 54548239, 545.48


  Specifications/Hafele Catalog - Page# FC3.50: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs
