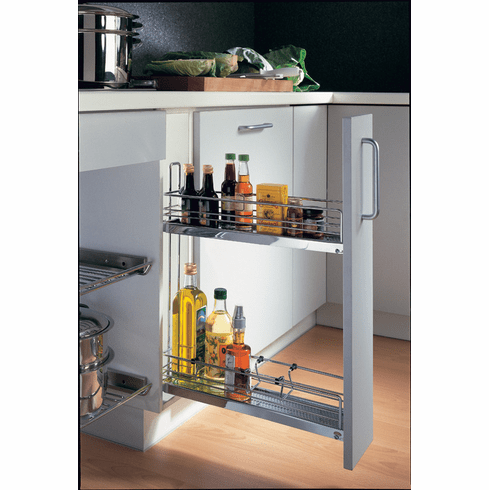

Hafele 545.61.249 Base Pull-Out, 2-Tier, 45 degree Right swing

Product Information

• Description

  Manufacturer: Hafele
  Item: 545.61.249

  Product Title: Base Pull-Out, 2-Tier, 45°, 2 tiers with 2 separators, Right swing

  Category: Base Pull-Out, 2-Tier, 45°, 2 tiers with 2 separators

  Item Details …

  - Soft & Silent Feature slows the pull-out just before final closure, creating automatic and silent closing

  - Slides are concealed under the metal trays

  - Make the most of a narrow space

  - Shelves accommodate items with Ø90 mm (3 1/2")

  - For cabinet width : 150 mm

  - For internal cabinet width : ?112 mm

  - For internal cabinet depth : ?495 mm

  - For internal cabinet height : 540 mm

  - Color/finish : Chrome plated, Chrome

  - Mounting : Right-mounted

  - Version : Classic

  - Version : Classic

  - Dim. A : 38.00 mm

  - Width : 104.00 mm

  - Depth : 473.00 mm

  - For internal cabinet height : min: 22 1/4"

  - For internal cabinet depth min. : 19 1/2"

  - For internal cabinet width : Min. 4 1/2"

  - Model : Classic

  - Type of pull out : Full extension

  - Load bearing capacity : 12.00 kg

  - Load bearing capacity : 26.4 lbs

  - Installation depth : 505.00 mm

  - Material : Steel

  - Installation : For screw fixing to side panel

  - Soft closing mechanism : Yes

  - Suitable for : Left cabinet

  - Features : Classic

  - Supplied with:

  - Textured surface metal trays

  - Full extension slides


  Additional Information …

  Push catch type 2 (yellow) is suitable for applications without handles.
