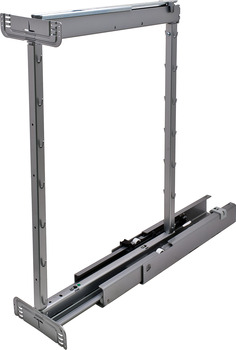

Hafele 546.62.913 Pull-Out Pantry Frame, Full Extension, 265 lbs. Weight Capacity Silver, installed height 74 7/8 - 90 1/2"

Product Information

• Description

  Manufacturer: Hafele
  Item: 546.62.913

  Product Title: Dispensa Pull-Out Pantry Frame, Full Extension, 265 lbs. Weight Capacity, Silver, installed height 74 7/8 - 90 1/2"

  Category: Dispensa Pull-Out Pantry Frame, Full Extension, 265 lbs. Weight Capacity,

  Item Details …

  - Works with overlay and inset doors

  - For 12" (305 mm) to 24" (610 mm) cabinet widths

  - Integrated soft open and soft close

  - Synchronized runner provides a more stable and smooth operation

  - Easy installation

  - Internal installation height :

  - Load bearing capacity of pull out shelf : 120.00 kg

  - Width : 121.00 mm

  - Width (inch) : 4 3/4"

  - Depth : 546.00 mm

  - Depth (inch) : 21 1/2"

  - Load bearing capacity : 265 lbs

  - Material : Steel

  - Comfort functions opening/closing : Soft closing mechanism

  - Suitable for : Overlay and inset doors

  - Features : Recommended for 8 shelves

  - Installation reference : For 12” to 24” cabinet widths

  - Installation : for door front fixing

  - Order reference

  - Tray/basket sets must be ordered separately.

  - Supplied with:

  - Frame

  - Slides

  - Brackets

• Data Sheet

  Detailed Data Sheet

• Product Resources

  Dispensa Pantry Pull-out Mounting Instructions

  Dispensa Pantry Pull-out Troubleshooting Guide

  TCH_Furniture_Cabinetry_Hardware_2022|Page 3.51



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.38-3.39.pdf



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Dispensa Fineline™ Pantry Box (choose one):


  • 4" wide, walnut 5" wide, walnut 7" wide, walnut 8" wide, walnut 10" wide, walnut 11" wide, walnut 13" wide, walnut 14" wide, walnut 16" wide, walnut 17" wide, walnut 19" wide, walnut 20" wide, walnut 22" wide, walnut 4" wide, birch 5" wide, birch 7" wide, birch 8" wide, birch 10" wide, birch 11" wide, birch 13" wide, birch 14" wide, birch 16" wide, birch 17" wide, birch 19" wide, birch 20" wide, birch 22" wide, birch

    545.96.780 545.96.781 545.96.782 545.96.783 545.96.784 545.96.785 545.96.786 545.96.787 545.96.788 545.96.789 545.96.790 545.96.791 545.96.792 545.96.880 545.96.881 545.96.882 545.96.883 545.96.884 545.96.885 545.96.886 545.96.887 545.96.888 545.96.889 545.96.890 545.96.891 545.96.892

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Dispensa Fineline™ Pantry Bracket Set (choose one):


  • 4" wide, 304 stainless steel, brushed 5" wide, 304 stainless steel, brushed 7" wide, 304 stainless steel, brushed 8" wide, 304 stainless steel, brushed 10" wide, 304 stainless steel, brushed 11" wide, 304 stainless steel, brushed 13" wide, 304 stainless steel, brushed 14" wide, 304 stainless steel, brushed 16" wide, 304 stainless steel, brushed 17" wide, 304 stainless steel, brushed 20" wide, 304 stainless steel, brushed 22" wide, 304 stainless steel, brushed 4" wide, steel, champagne 5" wide, steel, champagne 7" wide, steel, champagne 8" wide, steel, champagne 10" wide, steel, champagne 11" wide, steel, champagne 13" wide, steel, champagne 14" wide, steel, champagne 16" wide, steel, champagne 17" wide, steel, champagne 19" wide, steel, champagne 20" wide, steel, champagne 22" wide, steel, champagne 4" wide, steel, silver 5" wide, steel, silver 7" wide, steel, silver 8" wide, steel, silver 10" wide, steel, silver 11" wide, steel, silver 13" wide, steel, silver 14" wide, steel, silver 16" wide, steel, silver 17" wide, steel, silver 19" wide, steel, silver 20" wide, steel, silver 22" wide, steel, silver

    545.96.000 545.96.001 545.96.002 545.96.003 545.96.004 545.96.005 545.96.006 545.96.007 545.96.008 545.96.009 545.96.011 545.96.012 545.96.800 545.96.801 545.96.802 545.96.803 545.96.804 545.96.805 545.96.806 545.96.807 545.96.808 545.96.809 545.96.810 545.96.811 545.96.812 545.96.900 545.96.901 545.96.902 545.96.903 545.96.904 545.96.905 545.96.906 545.96.907 545.96.908 545.96.909 545.96.910 545.96.911 545.96.912

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Wire Basket Set, for Pantry Pull-Out (choose one):


  • Dispensa, Chrome, width 8" Dispensa, Chrome, width 11" Dispensa, Chrome, width 14" Dispensa, Chrome, width 17" Dispensa, Chrome, width 20" Dispensa, Chrome, width 10" Dispensa, Chrome, width 13" Dispensa, Chrome, width 16" Dispensa, Chrome, width 19" Dispensa, Chrome, width 22"

    546.63.202 546.63.203 546.63.204 546.63.205 546.63.206 546.63.222 546.63.223 546.63.224 546.63.225 546.63.226

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Tray Set, Dispensa (choose one):


  • For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 4", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 5", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 7", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 8", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 11", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 14", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 17", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 20", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 10", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 13", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 16", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/maple, width 19", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Maple, width 4", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Maple, width 5", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Maple, width 7", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 8", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 11", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 14", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 17", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 20", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 10", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 13", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 16", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/white, width 19", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/White, width 4", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/White, width 5", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/White, width 7", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/gray, width 10", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/gray, width 13", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/gray, width 16", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Gray, width 4", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Gray, width 7", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Gray, width 4", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 8", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 10", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 11", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 13", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 14", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 16", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 20", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 17", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Anthracite, width 19", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 8", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 11", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 14", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 17", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 20", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 10", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 13", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 16", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/maple, width 19", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/Maple, width 4", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/Maple, width 5", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/Maple, width 7", 2 trays For Pantry Pull-Out & Base Pull-Out II, Champagne/Maple, width 4", 2 trays For Pantry Pull-Out & Base Pull-Out II, Chrome/Maple, width 5", 1 tray For Pantry Pull-Out & Base Pull-Out II, Chrome/Maple, width 7", 1 tray For Pantry Pull-Out & Base Pull-Out II, Chrome/Maple, width 8", 1 tray For Pantry Pull-Out & Base Pull-Out II, Chrome/White, width 5", 1 tray For Pantry Pull-Out & Base Pull-Out II, Chrome/White, width 7", 1 tray For Pantry Pull-Out & Base Pull-Out II, Chrome/White, width 8", 1 tray For Pantry Pull-Out & Base Pull-Out II, Champagne/Maple, width 5", 1 tray For Pantry Pull-Out & Base Pull-Out II, Champagne/Maple, width 7", 1 tray For Pantry Pull-Out & Base Pull-Out II, Champagne/Maple, width 8", 1 tray

    545.09.340 545.09.341 545.09.342 546.63.112 546.63.113 546.63.114 546.63.115 546.63.116 546.63.132 546.63.133 546.63.134 546.63.135 546.63.160 546.63.161 546.63.162 546.63.212 546.63.213 546.63.214 546.63.215 546.63.216 546.63.232 546.63.233 546.63.234 546.63.235 546.63.260 546.63.261 546.63.262 546.63.532 546.63.533 546.63.534 546.63.560 546.63.562 546.63.578 546.63.580 546.63.581 546.63.582 546.63.583 546.63.584 546.63.585 546.63.586 546.63.587 546.63.588 546.63.812 546.63.813 546.63.814 546.63.815 546.63.816 546.63.832 546.63.833 546.63.834 546.63.835 546.63.860 546.63.861 546.63.862 546.63.878 595.98.101 595.98.102 595.98.123 595.98.201 595.98.202 595.98.223 595.98.801 595.98.802 595.98.823

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Optional Basket Holder, for Pantry & Swing Pull-Out
  • Optional Front Stabilizer, for Pantry & Swing Pull-Out
