Hafele 548.10.440 Magic Corner II, for Blind Corner Cabinets Champagne, swings right

Product Information

• Description

  Hafele 548.10.440 Magic Corner II, for Blind Corner Cabinets
  Champagne, swings right

  Additional items required to complete installation:
  Tray Set, for Magic Corner II
  Wire Basket Set, for Magic Corner II

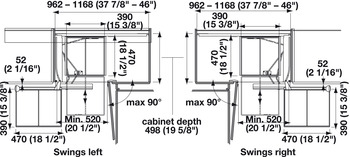

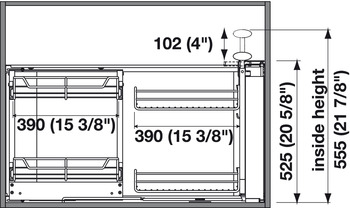

  Inside cabinet height : (21 7/8") 555 mm

  Features : Soft & silent

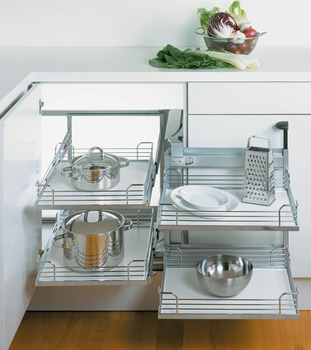

  Front baskets pull out and swivel to a 90° open position while back baskets are simultaneously moved to the cabinet opening

  Load bearing capacity : Back/per basket: (17 lbs) 8 kg
  Front/per basket: (22 lbs) 10 kg

  Application : For use with hinged door

  Material : Steel, powder-coated

  Note :

  Tray sets must be ordered separately.







• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.7-3.7.pdf

  Hafele 548.10.440, 548-10-440, 54810440, 548.10


  Specifications/Hafele Catalog - Page# FC3.7: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Kitchen Organization Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Catalog Pages

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Installation Manuals

  Click: :Magic Corner II Frame Instruc
