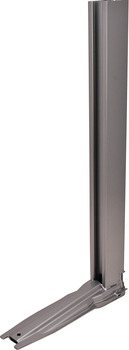

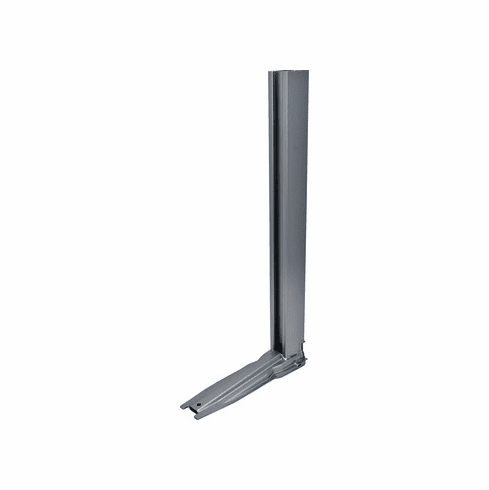

Hafele 549.60.901 Pantry Frame, for LAVIDO Pantry Pull-Out 730 mm (32"), for 42" to 57" height

Product Information

• Description

  Hafele 549.60.901 Pantry Frame, for LAVIDO Pantry Pull-Out
  730 mm (32"), for 42" to 57" height



  Features : Soft open and soft close

  Extension length : (18 1/2��) 470 mm

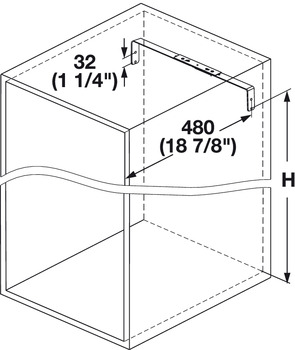

  Internal cabinet depth : Min: (19 11/16") 500 mm

  Type of pull out : Full extension

  Load bearing capacity : Per shelf (44 lbs) 19.5 kg /Total (286 lbs) 129.5 kg

  Adjustment : Infinite height adjustment feature on shelves - simply lift a lever to unlock the shelf for repositioning

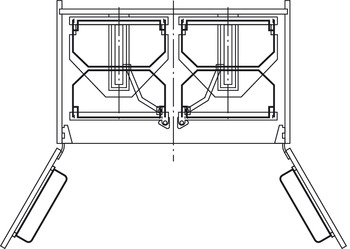

  Application : For use with a hinged door - 165� hinge opening recommended, 90� opening minimum
  For 18�� to 24�� Nominal Cabinet Widths

  For Cabinet Width : 500-600 mm

  Material : Steel



  Optional items:
  Individual Adjustable Tray, for LAVIDO Pantry Pull-Out
  Tray Set (of Four), for LAVIDO Pantry Pull-Out
  Full Extension Runner, for LAVIDO Pantry Pull-Out
  Optional Touch Auto Opener, for LAVIDO Pantry Pull-Out


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_3.44-3.45.pdf

  Hafele 549.60.901, 549-60-901, 54960901, 549.60
