Hafele 550.47.560 Front Panel Kits for Grass Vionaro, for Side Height: (3 1/2") 89 mm silver

Product Information

• Description

  Manufacturer: Hafele
  Item: 550.47.560

  Product Title: Front Panel Kits for Grass Vionaro, for Side Height: (3 1/2") 89 mm, silver

  Category: Front Panel Kits for Grass Vionaro, for Side Height: (3 1/2") 89 mm, For screw fixing, white

  Item Details �

  - Installation : For screw fixing

  - Drawer length : 3 1/2"

  - Material : Aluminum

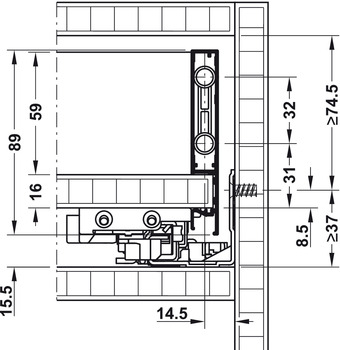

  - Installation reference : Installation dimensions: the specifications for internal installation height and installation dimensions of the rear panel are identical to those of the pull out for door front fixing with drawer side height of 185 mm.min. internal installation depth = nominal length + 12 mm

  - Model series : Vionaro

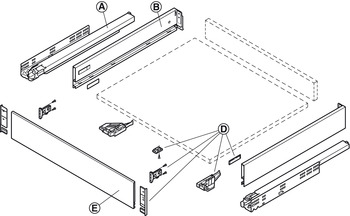

  - Supplied with:

  - 2 Cover caps

  - Front locking device set, left and right

  - 2 Front connectors

  - 4 Front connector screws

  - Front bottom connector

  - 2 End caps

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.32



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.12-8.13.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Tipmatic Soft-Close, for Dynapro Concealed Runners
  • Marking Jig, for Grass Vionaro Drawer System
  • Front Panel for Grass Vionaro, for Side Height: (3 1/2") 89 mm
