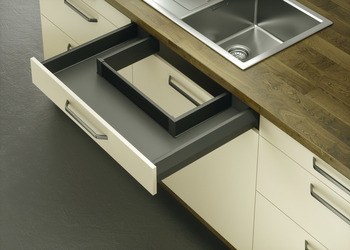

Hafele 551.54.323 Matrix Box P50, drawer side height 92 mm, load bearing capacity 50 kg Anthracite, length: 400 mm (15 3/4")

Product Information

• Description

  Manufacturer: Hafele
  Item: 551.54.323

  Product Title: Drawer side runner system, Häfele Matrix Box P50, drawer side height (3 5/8") 92 mm, load bearing capacity (110 lbs) 50 kg, Load bearing capacity 50 kg, Häfele Matrix Box P50 drawer set, drawer side height 92 mm, Anthracite, length: 400 mm (15 3/4")

  Category: Drawer side runner system, H�fele Matrix Box P50, drawer side height (3 5/8") 92 mm, load bearing capacity (110 lbs) 50 kg, Load bearing capacity 50 kg, H�fele Matrix Box P50 drawer set, drawer side height 92 mm

  Item Details �

  - Load bearing capacity : 50.00 kg

  - Load bearing capacity : 110 lbs

  - Material : Steel

  - Height (inch) : 3 5/8"

  - Type of pull out : Full extension, with integrated Smuso soft closing mechanism and self closing mechanism, with integrated rear panel fitting

  - Drawer side height : 92.00 mm

  - Front fixing brackets : not included

  - Adjustment facility : Convenient height and side adjustment from above when installedHeight adjustment ± 2.5 mmSide adjustment ± 1.5 mm

  - Installation : Mounting and disassembly of the panel without tools

  - Order reference

  - Please order recommended cylindrical head screw Cat. No. 013.20.930 for runner installation separately.

  - Front fixing brackets for drawer not included in scope of delivery, please order separately.

  - Supplied with:

  - 1 left and 1 right drawer side with rear panel fitting

  - 1 left and 1 right cabinet runner

  - 1 left and 1 right cover cap with Häfele logo relief

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Matrix Box P 92 / 115

  LGA certificate Matrix Box P 50 kg

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.8



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_8.4-8.4.pdf



• Required Products & Optional Accessories

  Optional Accessories:



  • Euro screw, with Special Cylinder Head, #2 Pozi Drive, Bulk Pack
  • Drawer Front Fixing Bracket, Häfele Matrix Box P
  • Panel holder, for Internal Standard Drawer, Häfele Matrix
  • Front Panel Holder, for Internal Deep Drawer, Häfele Matrix
  • Stabilizing Plate, Front panel stabilising plate, Häfele Matrix Box P
  • Spacer, For Häfele Matrix Box P internal drawer and internal pull out
  • Replacement Cover Cap, for Häfele Matrix Box P Plus drawer sides
  • Drawer press, Pressomat 200, for assembly of Moovit drawers
  • Panel holder, Häfele Matrix Box P
  • Insertion Tool, Häfele Matrix Box P
  • Marking Gauge, Häfele Matrix Box P
  • Gallery Rail, Round, Häfele Matrix Box P
  • Gallery Rail, Rectangular, Häfele Matrix Box P
  • Cross Front Rail, Round, Häfele Matrix Box P
  • Cross Rail Holder, Round, Häfele Matrix Box P
  • Cross rail, Rectangular
  • Cross rail holder, Rectangular, Häfele Matrix Box P
