Hafele 551.60.999 Panel holder, Matrix Box P Anthracite
, 55160999, 551-60-999 "Pin It")
Product Information
Description
Manufacturer: Hafele
Item: 551.60.999
Product Title: Panel holder, Häfele Matrix Box P, For gallery railing system, Anthracite
Category: Panel holder, Hfele Matrix Box P, For gallery railing system
Item Details
- For individual design with 8 mm thick panel made from e.g. glass, wood, acrylic,...
- Front panel tilting angle adjustment of ±2 mm via panel holder
- Additional stability with high pull outs for door front fixing
- Height (inch) : 3 3/8"
- Thickness (inch) : 5/16"
- Material thickness : 5/16"
- Area of application : for pull out for door front fixing
- Material : Aluminum, Plastic
- Order reference
- Matrix Box Plus drawer set, drawer side height 92 mm and glass panel not supplied, please order separately.

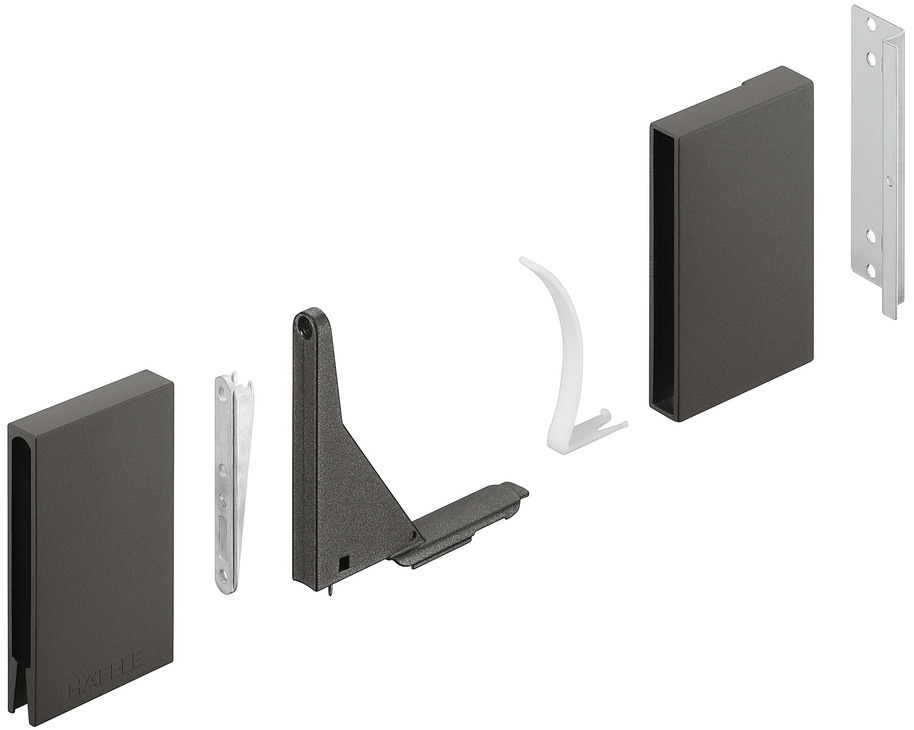

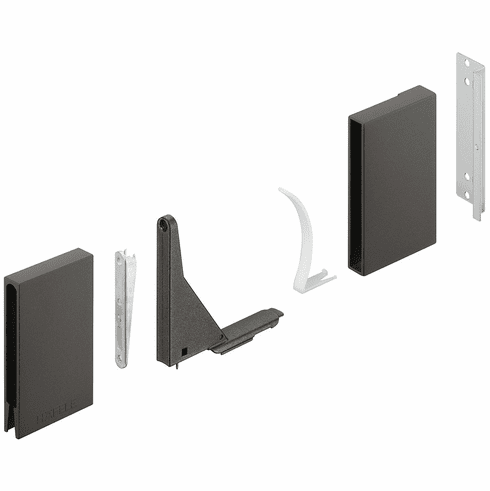

- Supplied with:
- 2 front brackets
- 2 panel holders with tension spring, adjustable screw for front bracket and insert for drawer sides
- 2 cover caps
- 2 panel holders, rear
- 2 rear panel fittings
Additional Information
Please order Moovit steel drawer set, drawer side height 92 mm (3 5/8”) separately.Data Sheet
