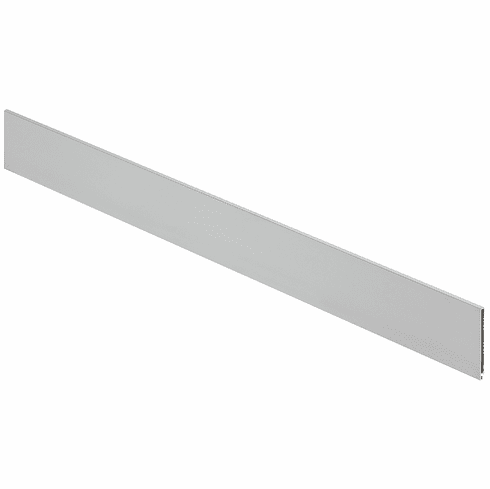

Hafele 551.89.509 Nova Pro Scala Front Panel, inset, 90mm x 1160mm, stone, aluminum

Product Information

• Description

  Manufacturer: Hafele
  Item: 551.89.509

  Product Title: Internal panel, F8, Grass Nova Pro Scala, for internal drawer, drawer side height 90 mm, Stone

  Category: Internal panel, F8, Grass Nova Pro Scala, for internal drawer, drawer side height 90 mm,

  Item Details …

  - Length : 1,160.00 mm

  - Length (inch) : 45 11/16"

  - For cabinet width : 1,200.00 mm

  - Suitable for : Drawer side runner system Grass

  - Area of application : For side panel thickness 19 mm

  - Material : Aluminum

  - Installation : Hooks must be screwed inpanel must be cut to sizelength = internal cabinet width – 8 mm

  - Height : 95.00 mm

  - Height (inch) : 10 7/8"

  - Installation reference : installation dimensionThe specifications for the internal installation height and installation dimensions of the rear panel are identical to the drawer with a drawer side height of 90 mm.min. internal installation depth = nominal length + 12 mm


  Additional Information …

  We recommend using 1 front base connector â’½ from a cabinet width of 600 mm and above.We recommend using 2 front base connector â’½ from a cabinet width of 800 mm and above.



  Hooks must be screwed inpanel must be cut to sizelength = internal cabinet width – 8 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 8.40
